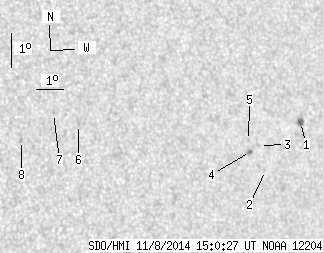

SDO HMI 2014-11-08 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.59 | 12.42 | 1.67 | 7.76 | 5.26 | 72.69 | 37.40 | 274.02 | 0.6072 | -272.4 | -171.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 4.66 | 1.40 | 3.04 | 5.47 | 75.92 | 40.63 | 274.22 | 0.6523 | -759.8 | -499.7 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 4.10 | 74.46 | 39.17 | 272.08 | 0.6327 | -634.0 | -536.7 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 4.85 | 74.28 | 38.98 | 273.27 | 0.6302 | -582.0 | -467.1 | |
| 0.43 | 1.81 | 0.27 | 1.15 | 4.69 | 73.92 | 38.63 | 273.01 | 0.6253 | -883.2 | -778.6 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 5.02 | 73.87 | 38.57 | 273.54 | 0.6246 | -571.0 | -465.9 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 5.73 | 67.67 | 32.38 | 275.03 | 0.5370 | 584.0 | 471.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 6.08 | 66.81 | 31.52 | 275.77 | 0.5246 | 336.0 | 410.0 | |
| 0.00 | 1.81 | 0.00 | 1.04 | 5.32 | 65.65 | 30.36 | 274.39 | 0.5068 | 691.0 | 616.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
