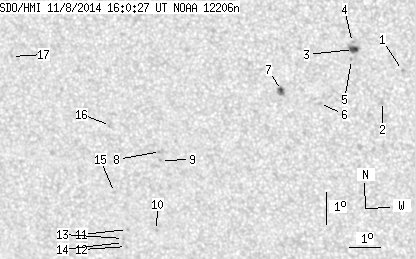

SDO HMI 2014-11-08 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.75 | 30.17 | 2.52 | 16.48 | -15.17 | 18.49 | -16.25 | 140.32 | 0.4202 | -124.9 | -184.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.58 | 23.71 | -11.03 | 147.70 | 0.3497 | 840.0 | 711.0 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -14.56 | 23.03 | -11.71 | 147.67 | 0.3689 | 709.0 | 486.0 | |
| 3.28 | 5.69 | 1.73 | 3.01 | -12.95 | 22.22 | -12.53 | 143.28 | 0.3551 | 991.6 | 762.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.73 | 22.20 | -12.55 | 142.86 | 0.3525 | 805.0 | 693.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.26 | 22.14 | -12.61 | 143.64 | 0.3599 | 842.0 | 656.5 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.65 | 21.05 | -13.69 | 143.66 | 0.3882 | 486.0 | 431.2 | |
| 1.47 | 5.00 | 0.79 | 2.69 | -14.26 | 19.87 | -14.87 | 140.76 | 0.3949 | -1024.1 | -790.5 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -16.24 | 15.81 | -18.93 | 137.18 | 0.4602 | -785.0 | -736.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -16.53 | 15.78 | -18.96 | 137.57 | 0.4637 | -791.0 | -650.3 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -18.77 | 15.40 | -19.35 | 140.25 | 0.4925 | -668.0 | -571.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -18.76 | 14.43 | -20.31 | 138.88 | 0.5019 | -860.0 | -666.8 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -19.30 | 14.32 | -20.42 | 139.49 | 0.5090 | -387.0 | -435.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -19.05 | 14.26 | -20.48 | 139.06 | 0.5068 | -680.0 | -599.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -19.18 | 14.24 | -20.50 | 139.21 | 0.5084 | -605.0 | -510.3 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -17.58 | 14.14 | -20.60 | 136.82 | 0.4922 | -882.0 | -623.5 | |
| 0.00 | 2.85 | 0.00 | 1.59 | -15.46 | 14.25 | -20.49 | 133.72 | 0.4688 | -375.0 | -372.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.38 | 11.19 | -23.55 | 126.43 | 0.4851 | -744.0 | -472.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
