SDO HMI 2014-11-08 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 16.98 | 0.26 | 10.36 | -22.43 | 9.23 | -24.96 | 138.00 | 0.5848 | 587.2 | 489.5 | |
|
previous
or next observation for the same group /

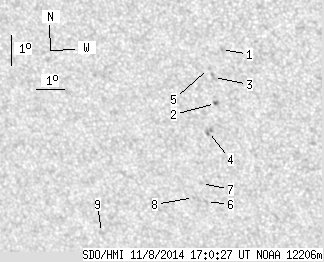

back to the solar disc SDO HMI 2014-11-08 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.71 | -19.54 | 10.68 | -23.51 | 135.90 | 0.5423 | 733.0 | 562.3 | |
| 0.43 | 1.90 | 0.26 | 1.14 | -21.30 | 10.18 | -24.01 | 137.66 | 0.5650 | 788.0 | 678.9 | |
| 0.00 | 3.19 | 0.00 | 1.90 | -20.45 | 10.26 | -23.93 | 136.64 | 0.5558 | 654.0 | 502.4 | |
| 0.00 | 3.88 | 0.00 | 2.35 | -22.23 | 9.77 | -24.42 | 138.36 | 0.5783 | 840.0 | 696.4 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -20.17 | 10.13 | -24.06 | 136.11 | 0.5542 | 623.0 | 484.9 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -24.58 | 9.22 | -24.97 | 140.57 | 0.6067 | 686.0 | 644.1 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -23.98 | 9.17 | -25.02 | 139.81 | 0.6011 | 555.0 | 425.3 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -24.46 | 8.78 | -25.41 | 139.96 | 0.6094 | 378.0 | 437.3 | |
| 0.00 | 2.07 | 0.00 | 1.35 | -25.75 | 5.06 | -29.13 | 137.77 | 0.6546 | -24.0 | -116.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
