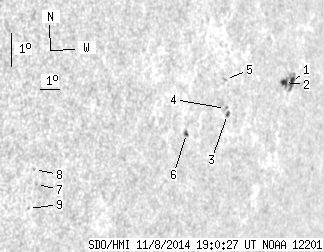

SDO HMI 2014-11-08 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.14 | 26.56 | 9.17 | 25.82 | -5.35 | 91.77 | 58.68 | 261.55 | 0.8605 | 284.9 | 308.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.22 | 16.64 | 4.37 | 17.12 | -5.01 | 93.93 | 60.85 | 262.31 | 0.8799 | 440.6 | 457.0 | |
| 3.02 | -1.00 | 3.08 | -1.00 | -4.98 | 93.50 | 60.41 | 262.28 | 0.8762 | 685.8 | 999999 | |
| 0.95 | 2.07 | 0.88 | 1.93 | -5.77 | 90.31 | 57.22 | 260.90 | 0.8493 | 370.8 | 431.8 | |
| 0.00 | 1.98 | 0.00 | 1.84 | -5.58 | 90.17 | 57.08 | 261.09 | 0.8478 | 478.0 | 404.4 | |
| 0.00 | 1.29 | 0.00 | 1.19 | -4.70 | 90.05 | 56.96 | 262.10 | 0.8456 | 594.0 | 479.5 | |
| 0.95 | 2.24 | 0.84 | 1.98 | -6.22 | 88.16 | 55.08 | 259.99 | 0.8299 | -492.6 | -417.4 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -7.40 | 81.08 | 48.00 | 257.00 | 0.7586 | -327.0 | -277.4 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -6.94 | 80.93 | 47.84 | 257.56 | 0.7559 | -287.0 | -335.9 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -8.12 | 80.83 | 47.74 | 256.01 | 0.7575 | -371.0 | -375.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
