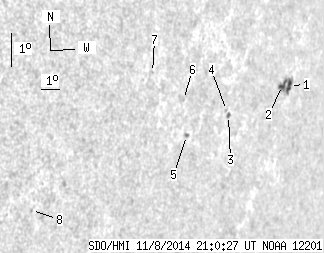

SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.14 | 23.02 | 9.68 | 23.41 | -5.23 | 92.21 | 60.24 | 261.93 | 0.8740 | 292.5 | 208.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.48 | 15.69 | 4.82 | 16.75 | -5.02 | 94.02 | 62.05 | 262.46 | 0.8895 | 462.6 | 415.0 | |
| 3.88 | -1.00 | 4.11 | -1.00 | -4.99 | 93.57 | 61.60 | 262.43 | 0.8859 | 611.2 | 999999 | |
| 0.78 | 1.98 | 0.75 | 1.91 | -5.72 | 90.44 | 58.46 | 261.15 | 0.8603 | 350.9 | 354.0 | |
| 0.00 | 1.12 | 0.00 | 1.08 | -5.56 | 90.30 | 58.32 | 261.31 | 0.8589 | 496.0 | 406.9 | |
| 0.00 | 1.64 | 0.00 | 1.49 | -6.20 | 88.17 | 56.20 | 260.22 | 0.8404 | -396.0 | -397.3 | |
| 0.00 | 0.95 | 0.00 | 0.85 | -5.10 | 87.85 | 55.87 | 261.47 | 0.8359 | -145.0 | -230.6 | |
| 0.00 | 0.78 | 0.00 | 0.66 | -4.20 | 86.13 | 54.15 | 262.28 | 0.8180 | -365.0 | -336.9 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -8.08 | 80.81 | 48.83 | 256.34 | 0.7692 | -300.0 | -326.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
