SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 6.73 | 1.19 | 4.50 | 5.15 | 74.33 | 42.35 | 273.73 | 0.6740 | -272.6 | -404.0 | |
|
previous
or next observation for the same group /

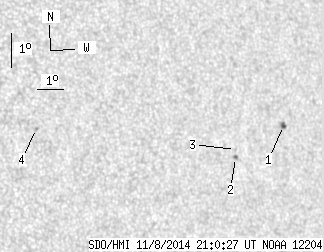

back to the solar disc SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 3.36 | 1.19 | 2.31 | 5.44 | 76.00 | 44.02 | 274.12 | 0.6960 | -664.8 | -509.4 | |
| 0.00 | 1.90 | 0.00 | 1.26 | 4.57 | 73.97 | 41.99 | 272.86 | 0.6700 | -810.0 | -681.5 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 4.81 | 73.98 | 42.00 | 273.21 | 0.6702 | -384.0 | -431.2 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 5.73 | 66.47 | 34.49 | 274.91 | 0.5677 | 843.0 | 761.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
