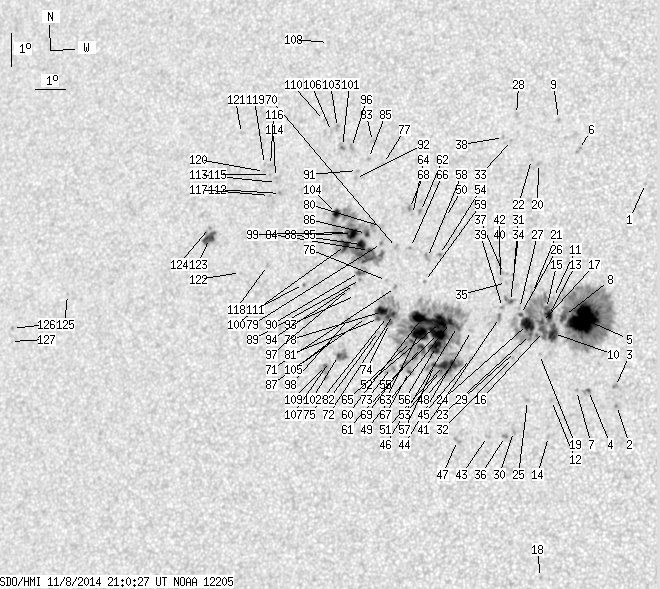

SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 263.75 | 1107.89 | 141.98 | 597.68 | 15.14 | 11.66 | -20.31 | 58.41 | 0.3942 | -296.4 | -114.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.99 | 17.46 | -14.52 | 41.55 | 0.3590 | -583.0 | -431.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 12.23 | 17.02 | -14.96 | 58.85 | 0.2961 | -1030.0 | -901.8 | |
| 0.00 | 2.41 | 0.00 | 1.25 | 12.80 | 16.96 | -15.02 | 57.29 | 0.3017 | -866.0 | -829.7 | |
| 0.69 | 3.79 | 0.36 | 1.98 | 12.67 | 16.11 | -15.87 | 59.00 | 0.3126 | -1140.8 | -898.1 | |
| 54.23 | 385.62 | 28.49 | 203.14 | 14.81 | 15.84 | -16.14 | 53.75 | 0.3348 | -1448.2 | -434.9 | |
| 0.00 | 2.59 | 0.00 | 1.39 | 20.00 | 15.16 | -16.81 | 43.63 | 0.3957 | -866.0 | -774.9 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 12.67 | 15.73 | -16.25 | 59.58 | 0.3180 | -876.0 | -775.9 | |
| 4.91 | -5.00 | 2.59 | -5.00 | 14.92 | 15.19 | -16.79 | 54.50 | 0.3444 | -697.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 20.92 | 14.39 | -17.58 | 43.18 | 0.4142 | -765.0 | -683.7 | |
| 9.66 | -5.00 | 5.09 | -5.00 | 14.37 | 14.88 | -17.10 | 56.32 | 0.3438 | -1203.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 15.46 | 14.79 | -17.19 | 53.80 | 0.3546 | -545.0 | -262.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 12.35 | 14.96 | -17.02 | 61.52 | 0.3268 | -831.0 | -667.9 | |
| 5.52 | -5.00 | 2.92 | -5.00 | 14.91 | 14.67 | -17.31 | 55.28 | 0.3513 | -929.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 11.27 | 14.93 | -17.05 | 64.61 | 0.3197 | -758.0 | -570.4 | |
| 1.38 | -5.00 | 0.73 | -5.00 | 15.12 | 14.59 | -17.39 | 54.89 | 0.3542 | -624.8 | 999999 | |
| 4.74 | -5.00 | 2.50 | -5.00 | 14.43 | 14.55 | -17.43 | 56.65 | 0.3488 | -1063.6 | 999999 | |
| 1.64 | -5.00 | 0.87 | -5.00 | 14.70 | 14.46 | -17.51 | 56.11 | 0.3522 | -768.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 7.06 | 14.88 | -17.10 | 77.74 | 0.2999 | -769.0 | -649.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 13.73 | 14.48 | -17.50 | 58.51 | 0.3441 | -696.0 | -557.0 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 19.55 | 13.89 | -18.09 | 46.47 | 0.4053 | -771.0 | -674.2 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 15.60 | 14.10 | -17.88 | 54.48 | 0.3649 | -677.0 | -405.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 19.67 | 13.64 | -18.33 | 46.61 | 0.4094 | -686.0 | -560.5 | |
| 0.78 | -5.00 | 0.41 | -5.00 | 14.33 | 14.14 | -17.84 | 57.47 | 0.3536 | -896.8 | 999999 | |
| 12.85 | -5.00 | 6.81 | -5.00 | 14.63 | 14.02 | -17.96 | 56.90 | 0.3577 | -1053.0 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 12.34 | 14.19 | -17.78 | 62.53 | 0.3378 | -996.0 | -687.3 | |
| 0.95 | -5.00 | 0.50 | -5.00 | 14.93 | 13.77 | -18.21 | 56.52 | 0.3636 | -763.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 15.11 | 13.72 | -18.26 | 56.16 | 0.3658 | -536.0 | -417.2 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 21.05 | 12.97 | -19.01 | 45.05 | 0.4313 | -677.0 | -575.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 13.81 | 13.70 | -18.28 | 59.34 | 0.3556 | -695.0 | -561.5 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 11.40 | 13.81 | -18.17 | 65.53 | 0.3373 | -906.0 | -711.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 16.14 | 13.43 | -18.55 | 54.19 | 0.3784 | -776.0 | -578.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 13.62 | 13.62 | -18.36 | 59.90 | 0.3554 | -598.0 | -402.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 20.24 | 12.91 | -19.07 | 46.60 | 0.4237 | -709.0 | -618.5 | |
| 0.86 | 5.09 | 0.46 | 2.71 | 15.31 | 13.41 | -18.57 | 56.09 | 0.3717 | -903.5 | -678.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 15.89 | 13.23 | -18.75 | 55.03 | 0.3790 | -759.0 | -536.3 | |
| 0.00 | 2.76 | 0.00 | 1.45 | 11.25 | 13.56 | -18.41 | 66.22 | 0.3400 | -1044.0 | -797.1 | |
| 0.00 | 3.19 | 0.00 | 1.71 | 16.16 | 13.10 | -18.88 | 54.59 | 0.3830 | -338.0 | -349.6 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 20.33 | 12.63 | -19.35 | 46.83 | 0.4278 | -612.0 | -545.9 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 15.13 | 13.17 | -18.81 | 56.85 | 0.3735 | -808.0 | -627.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 15.98 | 13.02 | -18.96 | 55.10 | 0.3825 | -472.0 | -397.9 | |
| 0.00 | 3.19 | 0.00 | 1.70 | 14.82 | 13.10 | -18.88 | 57.65 | 0.3720 | -910.0 | -748.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 16.52 | 12.93 | -19.04 | 54.01 | 0.3883 | 880.0 | 759.6 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 11.24 | 12.99 | -18.99 | 66.84 | 0.3486 | -716.0 | -633.1 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 14.41 | 12.22 | -19.76 | 59.68 | 0.3809 | 440.0 | 417.7 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 13.57 | 12.26 | -19.71 | 61.65 | 0.3742 | 907.0 | 680.2 | |
| 1.81 | 389.24 | 0.97 | 210.33 | 14.53 | 11.75 | -20.22 | 59.96 | 0.3883 | 1024.2 | 6.1 | |
| 0.00 | 3.28 | 0.00 | 1.74 | 11.10 | 12.04 | -19.94 | 68.11 | 0.3623 | -836.0 | -757.7 | |
| 6.72 | -46.00 | 3.60 | -46.00 | 13.35 | 11.67 | -20.31 | 62.83 | 0.3813 | -1228.7 | 999999 | |
| 3.97 | -46.00 | 2.13 | -46.00 | 14.64 | 11.51 | -20.46 | 59.96 | 0.3924 | 1222.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 17.83 | 11.00 | -20.98 | 53.73 | 0.4245 | 761.0 | 610.5 | |
| 5.52 | -46.00 | 2.96 | -46.00 | 13.34 | 11.41 | -20.57 | 63.12 | 0.3850 | -1179.0 | 999999 | |
| 14.66 | -46.00 | 7.90 | -46.00 | 14.64 | 11.19 | -20.79 | 60.33 | 0.3970 | 1183.9 | 999999 | |
| 0.69 | -46.00 | 0.37 | -46.00 | 13.19 | 11.32 | -20.66 | 63.57 | 0.3852 | -782.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 16.70 | 10.93 | -21.04 | 56.13 | 0.4160 | -767.0 | -494.6 | |
| 18.36 | -46.00 | 9.89 | -46.00 | 14.30 | 11.15 | -20.82 | 61.13 | 0.3951 | -721.8 | 999999 | |
| 11.38 | -46.00 | 6.13 | -46.00 | 13.91 | 11.13 | -20.85 | 62.07 | 0.3928 | -1209.3 | 999999 | |
| 1.38 | -46.00 | 0.74 | -46.00 | 13.33 | 11.11 | -20.87 | 63.43 | 0.3892 | -994.1 | 999999 | |
| 0.00 | 3.19 | 0.00 | 1.74 | 16.60 | 10.55 | -21.43 | 56.78 | 0.4204 | 371.0 | 277.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 15.87 | 10.53 | -21.45 | 58.34 | 0.4150 | -745.0 | -633.3 | |
| 19.05 | -46.00 | 10.32 | -46.00 | 14.74 | 10.55 | -21.43 | 60.77 | 0.4066 | 1148.4 | 999999 | |
| 3.88 | -46.00 | 2.09 | -46.00 | 13.87 | 10.64 | -21.34 | 62.66 | 0.3995 | -1001.0 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 18.00 | 10.14 | -21.84 | 54.41 | 0.4369 | 975.0 | 836.4 | |
| 20.69 | -46.00 | 11.19 | -46.00 | 14.35 | 10.52 | -21.45 | 61.68 | 0.4043 | -720.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 17.90 | 9.88 | -22.09 | 54.89 | 0.4394 | 883.0 | 704.5 | |
| 1.38 | -46.00 | 0.75 | -46.00 | 14.04 | 10.29 | -21.69 | 62.60 | 0.4055 | -910.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 16.89 | 9.94 | -22.03 | 56.84 | 0.4306 | 832.0 | 594.0 | |
| 0.78 | -46.00 | 0.42 | -46.00 | 13.14 | 10.31 | -21.67 | 64.66 | 0.3995 | -677.0 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.47 | 18.08 | 9.76 | -22.22 | 54.68 | 0.4424 | 962.0 | 803.5 | |
| 0.78 | -46.00 | 0.42 | -46.00 | 13.40 | 10.16 | -21.82 | 64.19 | 0.4034 | -325.1 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.56 | 16.88 | 9.48 | -22.50 | 57.36 | 0.4367 | 875.0 | 644.0 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 15.66 | 9.59 | -22.39 | 59.76 | 0.4263 | 829.0 | 718.4 | |
| 1.47 | -46.00 | 0.80 | -46.00 | 14.84 | 9.61 | -22.37 | 61.49 | 0.4204 | 1079.4 | 999999 | |
| 0.00 | 7.85 | 0.00 | 4.25 | 13.24 | 9.71 | -22.27 | 64.96 | 0.4089 | 223.0 | -52.2 | |
| 0.86 | -46.00 | 0.47 | -46.00 | 14.57 | 9.51 | -22.47 | 62.18 | 0.4200 | -536.9 | 999999 | |
| 2.24 | -46.00 | 1.22 | -46.00 | 14.78 | 9.42 | -22.56 | 61.81 | 0.4226 | 1120.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 15.87 | 9.26 | -22.72 | 59.66 | 0.4322 | 735.0 | 585.6 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 19.44 | 8.68 | -23.30 | 53.29 | 0.4672 | 789.0 | 615.1 | |
| 7.67 | -46.00 | 4.20 | -46.00 | 14.93 | 9.24 | -22.74 | 61.67 | 0.4262 | 1056.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 16.99 | 8.96 | -23.02 | 57.68 | 0.4444 | 1082.0 | 875.8 | |
| 0.00 | 2.84 | 0.00 | 1.58 | 17.51 | 8.89 | -23.09 | 56.73 | 0.4492 | 703.0 | 627.4 | |
| 1.47 | -46.00 | 0.80 | -46.00 | 14.71 | 9.13 | -22.85 | 62.23 | 0.4263 | 151.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 14.32 | 9.17 | -22.81 | 63.04 | 0.4232 | -509.0 | -439.8 | |
| 0.00 | 1.98 | 0.00 | 1.12 | 20.11 | 8.20 | -23.78 | 52.60 | 0.4786 | 750.0 | 734.0 | |
| 1.81 | 151.65 | 1.00 | 84.43 | 16.77 | 8.58 | -23.40 | 58.50 | 0.4478 | 1106.0 | 148.3 | |
| 0.00 | 1.38 | 0.00 | 0.78 | 19.59 | 8.14 | -23.83 | 53.60 | 0.4750 | 884.0 | 755.8 | |
| 1.72 | -84.00 | 0.96 | -84.00 | 17.28 | 8.41 | -23.57 | 57.65 | 0.4538 | 612.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 14.73 | 8.72 | -23.25 | 62.56 | 0.4321 | -623.0 | -443.9 | |
| 5.69 | -84.00 | 3.16 | -84.00 | 16.94 | 8.29 | -23.69 | 58.44 | 0.4530 | 1099.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 15.88 | 8.39 | -23.59 | 60.48 | 0.4442 | -850.0 | -786.4 | |
| 1.47 | 8.19 | 0.81 | 4.53 | 16.09 | 8.33 | -23.65 | 60.10 | 0.4465 | -864.9 | -589.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 19.21 | 7.82 | -24.16 | 54.61 | 0.4760 | 798.0 | 600.7 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 18.96 | 7.79 | -24.19 | 55.10 | 0.4744 | 778.0 | 580.4 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 15.39 | 8.28 | -23.70 | 61.58 | 0.4425 | -658.0 | -558.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 15.72 | 8.21 | -23.77 | 60.97 | 0.4457 | -789.0 | -634.5 | |
| 7.33 | -84.00 | 4.08 | -84.00 | 17.27 | 7.94 | -24.04 | 58.13 | 0.4600 | -1072.5 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.41 | 19.91 | 7.50 | -24.48 | 53.67 | 0.4855 | 859.0 | 751.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 15.60 | 8.05 | -23.93 | 61.36 | 0.4470 | -613.0 | -577.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 14.66 | 8.13 | -23.85 | 63.24 | 0.4399 | -810.0 | -664.6 | |
| 1.55 | -84.00 | 0.87 | -84.00 | 17.30 | 7.76 | -24.22 | 58.25 | 0.4625 | -835.7 | 999999 | |
| 6.81 | -84.00 | 3.79 | -84.00 | 16.90 | 7.75 | -24.23 | 59.04 | 0.4599 | -935.5 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.71 | 19.94 | 7.19 | -24.79 | 53.95 | 0.4896 | 871.0 | 737.5 | |
| 1.47 | 8.62 | 0.81 | 4.74 | 13.57 | 7.92 | -24.06 | 65.74 | 0.4366 | 1010.1 | 955.6 | |
| 0.00 | 2.50 | 0.00 | 1.43 | 20.52 | 6.91 | -25.07 | 53.20 | 0.4975 | 722.0 | 668.4 | |
| 4.48 | -84.00 | 2.52 | -84.00 | 17.87 | 7.30 | -24.68 | 57.59 | 0.4726 | 766.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 14.07 | 7.73 | -24.25 | 64.81 | 0.4422 | 782.0 | 667.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 20.39 | 6.72 | -25.25 | 53.61 | 0.4988 | 741.0 | 645.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 13.38 | 7.63 | -24.34 | 66.36 | 0.4396 | 586.0 | 543.3 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 23.16 | 6.09 | -25.89 | 49.66 | 0.5288 | 749.0 | 589.8 | |
| 0.60 | 9.57 | 0.33 | 5.27 | 13.25 | 7.51 | -24.46 | 66.72 | 0.4407 | 1046.1 | 458.4 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 20.73 | 6.42 | -25.56 | 53.33 | 0.5051 | 486.0 | 430.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 15.68 | 6.48 | -25.50 | 62.54 | 0.4691 | 715.0 | 596.6 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 18.44 | 5.27 | -26.71 | 58.37 | 0.5028 | 921.0 | 774.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 18.77 | 5.07 | -26.91 | 57.94 | 0.5076 | 733.0 | 605.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 18.92 | 5.01 | -26.97 | 57.72 | 0.5094 | 797.0 | 623.3 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 19.01 | 4.82 | -27.16 | 57.73 | 0.5125 | 709.0 | 563.1 | |
| 0.00 | 2.33 | 0.00 | 1.34 | 19.29 | 4.77 | -27.21 | 57.29 | 0.5150 | 713.0 | 521.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 18.36 | 4.90 | -27.08 | 58.81 | 0.5072 | 648.0 | 537.8 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 16.23 | 5.16 | -26.82 | 62.52 | 0.4903 | -772.0 | -579.4 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 19.31 | 4.55 | -27.43 | 57.43 | 0.5179 | 608.0 | 514.4 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 19.10 | 4.59 | -27.39 | 57.77 | 0.5159 | 517.0 | 418.9 | |
| 0.00 | 1.81 | 0.00 | 1.06 | 20.25 | 3.55 | -28.43 | 56.66 | 0.5367 | 545.0 | 445.4 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 15.99 | 4.26 | -27.72 | 63.63 | 0.5011 | -600.0 | -438.8 | |
| 7.85 | 12.85 | 4.55 | 7.46 | 16.99 | 3.01 | -28.97 | 62.67 | 0.5235 | 888.9 | 602.8 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 17.33 | 2.95 | -29.03 | 62.12 | 0.5262 | 717.0 | 585.6 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 15.14 | 358.18 | -33.80 | 68.60 | 0.5790 | 565.0 | 468.9 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 14.04 | 356.32 | -35.66 | 71.17 | 0.5998 | 687.0 | 558.8 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 13.65 | 356.31 | -35.67 | 71.81 | 0.5986 | 459.0 | 518.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
