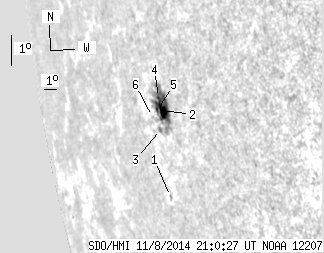

SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.45 | 56.90 | 11.92 | 80.47 | -8.43 | 323.31 | -68.67 | 100.38 | 0.9383 | 566.9 | 280.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 2.65 | -10.98 | 322.90 | -69.08 | 103.02 | 0.9427 | 148.0 | 171.9 | |
| 7.41 | 51.55 | 10.43 | 72.71 | -8.34 | 323.41 | -68.57 | 100.30 | 0.9376 | 799.8 | 317.0 | |
| 0.00 | 2.76 | 0.00 | 3.97 | -8.94 | 323.00 | -68.98 | 100.88 | 0.9405 | -17.0 | -34.3 | |
| 0.26 | -2.00 | 0.37 | -2.00 | -7.96 | 323.22 | -68.76 | 99.87 | 0.9385 | 584.7 | 999999 | |
| 0.78 | -2.00 | 1.12 | -2.00 | -8.33 | 322.99 | -68.99 | 100.24 | 0.9401 | 95.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 1.14 | -8.58 | 322.46 | -69.51 | 100.43 | 0.9433 | -356.0 | -345.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
