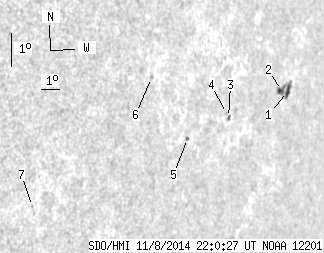

SDO HMI 2014-11-08 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.89 | 20.77 | 9.51 | 21.45 | -5.22 | 92.14 | 60.71 | 262.02 | 0.8778 | 263.5 | 206.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-08 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.97 | 14.14 | 4.35 | 15.40 | -5.08 | 94.01 | 62.58 | 262.46 | 0.8938 | 438.7 | 414.6 | |
| 3.71 | -1.00 | 4.00 | -1.00 | -5.03 | 93.61 | 62.19 | 262.47 | 0.8906 | 567.2 | 999999 | |
| 0.69 | 1.72 | 0.68 | 1.69 | -5.66 | 90.46 | 59.04 | 261.31 | 0.8653 | 353.1 | 351.5 | |
| 0.00 | 0.86 | 0.00 | 0.84 | -5.54 | 90.33 | 58.90 | 261.43 | 0.8640 | 414.0 | 316.9 | |
| 0.52 | 1.55 | 0.48 | 1.43 | -6.17 | 88.22 | 56.80 | 260.36 | 0.8459 | -357.8 | -338.6 | |
| 0.00 | 1.72 | 0.00 | 1.49 | -4.23 | 86.05 | 54.62 | 262.32 | 0.8227 | -429.0 | -362.5 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -7.84 | 80.72 | 49.30 | 256.78 | 0.7738 | -313.0 | -351.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
