SDO HMI 2014-11-09 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 258.47 | 1090.63 | 137.62 | 581.37 | 15.07 | 11.90 | -18.43 | 56.09 | 0.3682 | -277.6 | -145.3 | |
|
previous
or next observation for the same group /

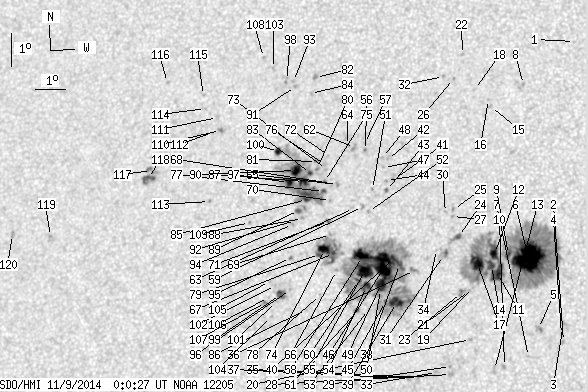

back to the solar disc SDO HMI 2014-11-09 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.42 | 21.44 | 16.75 | -13.57 | 35.30 | 0.3797 | -541.0 | -490.2 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 12.28 | 17.05 | -13.27 | 55.69 | 0.2727 | -893.0 | -758.1 | |
| 0.00 | 2.67 | 0.00 | 1.38 | 12.85 | 17.02 | -13.30 | 54.01 | 0.2784 | -893.0 | -712.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 12.48 | 16.98 | -13.34 | 55.19 | 0.2757 | -960.0 | -799.6 | |
| 0.00 | 4.05 | 0.00 | 2.09 | 12.66 | 16.25 | -14.07 | 56.04 | 0.2873 | -1035.0 | -849.8 | |
| 52.86 | 407.10 | 27.56 | 212.67 | 14.79 | 15.80 | -14.52 | 50.95 | 0.3135 | -1458.6 | -427.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 11.81 | 15.98 | -14.34 | 59.07 | 0.2839 | -875.0 | -663.4 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 20.08 | 15.21 | -15.11 | 40.54 | 0.3784 | -941.0 | -722.5 | |
| 2.59 | -6.00 | 1.35 | -6.00 | 14.87 | 15.16 | -15.16 | 51.90 | 0.3226 | -814.1 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 11.50 | 15.25 | -15.08 | 61.20 | 0.2922 | -1001.0 | -863.2 | |
| 11.99 | -6.00 | 6.27 | -6.00 | 14.29 | 14.85 | -15.47 | 53.92 | 0.3212 | -1188.4 | 999999 | |
| 6.04 | -6.00 | 3.16 | -6.00 | 14.90 | 14.71 | -15.61 | 52.61 | 0.3287 | -933.3 | 999999 | |
| 0.00 | 3.45 | 0.00 | 1.79 | 11.41 | 14.94 | -15.38 | 61.95 | 0.2960 | -767.0 | -715.2 | |
| 4.92 | -6.00 | 2.57 | -6.00 | 14.53 | 14.65 | -15.68 | 53.65 | 0.3262 | -1043.8 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 19.38 | 14.20 | -16.13 | 43.62 | 0.3814 | -890.0 | -640.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 19.60 | 14.11 | -16.21 | 43.36 | 0.3848 | -696.0 | -597.0 | |
| 16.04 | -6.00 | 8.42 | -6.00 | 14.59 | 14.20 | -16.13 | 54.25 | 0.3327 | -1017.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 19.90 | 13.62 | -16.71 | 43.61 | 0.3935 | -586.0 | -523.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 13.86 | 14.09 | -16.23 | 56.29 | 0.3277 | -781.0 | -584.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 12.29 | 14.13 | -16.19 | 60.50 | 0.3144 | -918.0 | -782.1 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 13.77 | 14.00 | -16.32 | 56.67 | 0.3282 | -736.0 | -628.4 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 20.98 | 13.10 | -17.22 | 42.49 | 0.4111 | -627.0 | -456.8 | |
| 0.00 | 3.88 | 0.00 | 2.04 | 13.70 | 13.75 | -16.57 | 57.21 | 0.3311 | -819.0 | -728.9 | |
| 1.64 | 6.29 | 0.87 | 3.33 | 15.39 | 13.52 | -16.80 | 53.32 | 0.3490 | -900.5 | -660.9 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 16.21 | 13.29 | -17.03 | 51.77 | 0.3596 | -818.0 | -609.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 20.23 | 12.89 | -17.44 | 44.17 | 0.4053 | -809.0 | -673.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 16.00 | 13.28 | -17.04 | 52.28 | 0.3577 | -643.0 | -601.5 | |
| 0.00 | 2.85 | 0.00 | 1.48 | 11.23 | 13.56 | -16.76 | 64.32 | 0.3153 | -936.0 | -751.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 11.47 | 13.55 | -16.78 | 63.64 | 0.3171 | -907.0 | -760.8 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 16.12 | 13.04 | -17.28 | 52.37 | 0.3619 | -615.0 | -468.7 | |
| 0.00 | 6.38 | 0.00 | 3.37 | 14.81 | 13.09 | -17.23 | 55.39 | 0.3496 | -710.0 | -604.6 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 20.29 | 12.55 | -17.78 | 44.59 | 0.4096 | -675.0 | -611.3 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 11.29 | 13.11 | -17.21 | 64.71 | 0.3223 | -767.0 | -669.4 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 14.99 | 12.85 | -17.47 | 55.31 | 0.3543 | -517.0 | -374.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 11.13 | 12.55 | -17.77 | 65.82 | 0.3297 | -857.0 | -611.1 | |
| 0.00 | 3.97 | 0.00 | 2.10 | 14.34 | 12.19 | -18.13 | 57.79 | 0.3579 | 867.0 | 739.3 | |
| 0.00 | 2.41 | 0.00 | 1.27 | 11.09 | 12.24 | -18.09 | 66.26 | 0.3343 | -834.0 | -697.1 | |
| 3.71 | 330.53 | 1.97 | 176.28 | 14.51 | 11.69 | -18.63 | 58.02 | 0.3662 | 1084.2 | -93.3 | |
| 10.35 | -38.00 | 5.48 | -38.00 | 13.37 | 11.69 | -18.63 | 60.85 | 0.3575 | -1246.7 | 999999 | |
| 3.71 | -38.00 | 1.98 | -38.00 | 14.69 | 11.48 | -18.84 | 57.87 | 0.3705 | 1224.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 17.09 | 11.25 | -19.07 | 52.79 | 0.3938 | 941.0 | 805.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 17.70 | 10.99 | -19.33 | 51.88 | 0.4027 | 787.0 | 684.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 16.75 | 11.06 | -19.27 | 53.78 | 0.3933 | -792.0 | -527.1 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 17.06 | 11.02 | -19.30 | 53.17 | 0.3964 | 895.0 | 680.0 | |
| 0.86 | -38.00 | 0.46 | -38.00 | 13.39 | 11.33 | -18.99 | 61.22 | 0.3627 | -1003.8 | 999999 | |
| 36.30 | -38.00 | 19.36 | -38.00 | 14.44 | 11.21 | -19.11 | 58.80 | 0.3723 | 52.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 17.45 | 10.88 | -19.44 | 52.53 | 0.4018 | 770.0 | 612.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 17.76 | 10.81 | -19.51 | 51.99 | 0.4053 | 784.0 | 657.1 | |
| 8.02 | -38.00 | 4.27 | -38.00 | 13.93 | 11.16 | -19.16 | 60.10 | 0.3691 | -1271.6 | 999999 | |
| 2.59 | -38.00 | 1.38 | -38.00 | 13.75 | 11.14 | -19.18 | 60.56 | 0.3680 | -1175.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 16.77 | 10.59 | -19.73 | 54.33 | 0.3995 | 700.0 | 621.3 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 16.10 | 10.53 | -19.79 | 55.86 | 0.3947 | -842.0 | -619.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 13.14 | 10.80 | -19.52 | 62.45 | 0.3686 | -714.0 | -557.5 | |
| 6.38 | -38.00 | 3.41 | -38.00 | 13.83 | 10.68 | -19.64 | 60.90 | 0.3752 | -1007.2 | 999999 | |
| 20.87 | -38.00 | 11.17 | -38.00 | 14.34 | 10.60 | -19.72 | 59.77 | 0.3800 | -728.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 17.96 | 10.23 | -20.09 | 52.35 | 0.4146 | 923.0 | 884.5 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 18.17 | 10.17 | -20.15 | 51.99 | 0.4172 | 777.0 | 671.4 | |
| 17.51 | -38.00 | 9.39 | -38.00 | 14.73 | 10.47 | -19.85 | 59.01 | 0.3848 | 1075.8 | 999999 | |
| 0.00 | 2.93 | 0.00 | 1.58 | 16.25 | 10.32 | -20.00 | 55.80 | 0.3988 | -844.0 | -550.2 | |
| 2.24 | -38.00 | 1.20 | -38.00 | 14.01 | 10.41 | -19.92 | 60.79 | 0.3803 | -860.6 | 999999 | |
| 0.60 | 2.16 | 0.32 | 1.15 | 13.10 | 10.45 | -19.87 | 62.92 | 0.3734 | -697.4 | -548.9 | |
| 0.00 | 3.36 | 0.00 | 1.83 | 18.05 | 9.85 | -20.47 | 52.65 | 0.4201 | 1023.0 | 770.1 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 16.18 | 10.03 | -20.29 | 56.30 | 0.4021 | 143.0 | 122.3 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 18.10 | 9.61 | -20.71 | 52.84 | 0.4236 | 739.0 | 675.5 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 16.90 | 9.42 | -20.90 | 55.50 | 0.4160 | 945.0 | 820.2 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 14.29 | 9.66 | -20.66 | 60.94 | 0.3929 | -433.0 | -314.6 | |
| 1.64 | 47.00 | 0.88 | 25.40 | 14.81 | 9.51 | -20.81 | 59.94 | 0.3986 | 1130.7 | 397.3 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 16.93 | 9.22 | -21.10 | 55.69 | 0.4188 | 567.0 | 655.0 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 15.38 | 9.36 | -20.97 | 58.83 | 0.4049 | 648.0 | 465.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 16.41 | 9.24 | -21.08 | 56.74 | 0.4144 | 1032.0 | 840.8 | |
| 0.60 | 2.07 | 0.33 | 1.12 | 15.77 | 9.25 | -21.07 | 58.10 | 0.4094 | 1048.3 | 839.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 17.78 | 9.01 | -21.31 | 54.19 | 0.4285 | 720.0 | 572.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 17.35 | 9.00 | -21.32 | 55.07 | 0.4251 | 817.0 | 674.5 | |
| 7.93 | -67.00 | 4.29 | -67.00 | 14.92 | 9.20 | -21.12 | 60.01 | 0.4037 | 1125.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 16.99 | 8.98 | -21.34 | 55.85 | 0.4224 | 1000.0 | 851.0 | |
| 0.00 | 2.24 | 0.00 | 1.23 | 17.50 | 8.91 | -21.41 | 54.87 | 0.4275 | 791.0 | 715.6 | |
| 1.47 | 135.04 | 0.80 | 74.22 | 16.68 | 8.98 | -21.34 | 56.48 | 0.4200 | 1058.9 | 98.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.56 | 9.21 | -21.12 | 63.11 | 0.3944 | 762.0 | 638.9 | |
| 2.24 | -67.00 | 1.21 | -67.00 | 14.77 | 9.06 | -21.27 | 60.52 | 0.4046 | 352.7 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 17.41 | 8.69 | -21.63 | 55.32 | 0.4296 | 714.0 | 704.8 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 17.59 | 8.64 | -21.69 | 55.01 | 0.4318 | 742.0 | 612.9 | |
| 0.00 | 2.67 | 0.00 | 1.49 | 20.17 | 8.25 | -22.07 | 50.57 | 0.4586 | 910.0 | 753.6 | |
| 1.38 | -77.00 | 0.76 | -77.00 | 17.22 | 8.48 | -21.84 | 55.93 | 0.4308 | 780.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 19.68 | 8.15 | -22.17 | 51.58 | 0.4554 | 867.0 | 765.2 | |
| 1.64 | -77.00 | 0.90 | -77.00 | 16.42 | 8.44 | -21.88 | 57.60 | 0.4251 | -546.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 13.10 | 8.79 | -21.53 | 64.59 | 0.3975 | 715.0 | 583.7 | |
| 5.26 | -77.00 | 2.89 | -77.00 | 16.97 | 8.28 | -22.04 | 56.66 | 0.4315 | 1034.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 15.84 | 8.38 | -21.95 | 58.89 | 0.4217 | -889.0 | -700.6 | |
| 1.47 | 6.04 | 0.80 | 3.30 | 16.08 | 8.22 | -22.11 | 58.55 | 0.4257 | -776.9 | -593.5 | |
| 8.11 | -77.00 | 4.46 | -77.00 | 17.30 | 7.97 | -22.35 | 56.33 | 0.4382 | -1063.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 19.88 | 7.61 | -22.71 | 51.83 | 0.4638 | 897.0 | 713.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 15.78 | 8.15 | -22.17 | 59.26 | 0.4243 | -769.0 | -588.9 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 20.03 | 7.52 | -22.80 | 51.66 | 0.4662 | 696.0 | 578.8 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 15.66 | 8.06 | -22.26 | 59.61 | 0.4246 | -983.0 | -728.3 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 14.65 | 8.11 | -22.21 | 61.72 | 0.4171 | -761.0 | -578.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.69 | 8.21 | -22.12 | 63.77 | 0.4095 | 795.0 | 675.7 | |
| 5.95 | -77.00 | 3.27 | -77.00 | 16.93 | 7.78 | -22.54 | 57.28 | 0.4378 | -980.6 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.35 | 20.06 | 7.27 | -23.05 | 51.88 | 0.4694 | 723.0 | 688.2 | |
| 3.88 | 7.67 | 2.11 | 4.17 | 13.53 | 7.89 | -22.43 | 64.42 | 0.4131 | 1079.4 | 837.0 | |
| 3.28 | -77.00 | 1.82 | -77.00 | 17.87 | 7.32 | -23.00 | 55.91 | 0.4510 | 818.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 13.32 | 7.78 | -22.54 | 65.00 | 0.4134 | 722.0 | 613.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 13.80 | 7.70 | -22.62 | 63.99 | 0.4174 | 764.0 | 694.7 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 20.42 | 6.77 | -23.55 | 51.79 | 0.4786 | 797.0 | 646.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 12.86 | 7.66 | -22.66 | 66.13 | 0.4125 | -606.0 | -450.8 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.91 | 7.49 | -22.83 | 63.92 | 0.4212 | 669.0 | 584.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 13.43 | 7.50 | -22.82 | 64.98 | 0.4180 | 764.0 | 504.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 13.28 | 7.42 | -22.90 | 65.39 | 0.4184 | 891.0 | 787.2 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 20.75 | 6.37 | -23.96 | 51.64 | 0.4862 | 678.0 | 545.1 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 15.68 | 6.62 | -23.70 | 60.95 | 0.4446 | 819.0 | 627.5 | |
| 0.00 | 1.98 | 0.00 | 1.12 | 18.47 | 5.24 | -25.08 | 56.84 | 0.4822 | 917.0 | 798.3 | |
| 0.00 | 2.76 | 0.00 | 1.56 | 18.86 | 5.08 | -25.24 | 56.27 | 0.4872 | 724.0 | 570.5 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 18.40 | 4.98 | -25.34 | 57.21 | 0.4851 | 624.0 | 584.2 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 16.29 | 5.18 | -25.14 | 61.02 | 0.4681 | -798.0 | -630.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 19.13 | 4.62 | -25.71 | 56.22 | 0.4950 | 571.0 | 449.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | 19.53 | 4.48 | -25.84 | 55.64 | 0.4997 | 671.0 | 518.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 19.90 | 3.14 | -27.18 | 56.19 | 0.5190 | 722.0 | 546.6 | |
| 0.00 | 4.48 | 0.00 | 2.56 | 17.18 | 3.05 | -27.28 | 61.07 | 0.5023 | 773.0 | 658.6 | |
| 4.40 | 8.36 | 2.51 | 4.78 | 16.94 | 2.98 | -27.34 | 61.57 | 0.5017 | 841.6 | 724.5 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 15.08 | 359.81 | -30.51 | 67.02 | 0.5346 | 828.0 | 697.7 | |
| 0.00 | 2.76 | 0.00 | 1.64 | 15.10 | 358.44 | -31.89 | 67.72 | 0.5533 | 699.0 | 600.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
