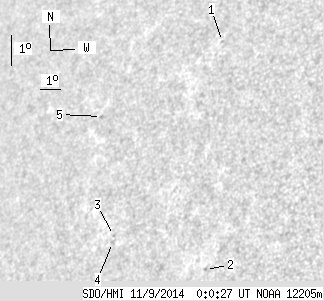

SDO HMI 2014-11-09 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.96 | 0.00 | 4.77 | 18.76 | 339.60 | -50.72 | 68.84 | 0.7880 | 316.8 | 265.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.61 | 23.60 | 341.58 | -48.74 | 62.28 | 0.7804 | 413.0 | 380.2 | |
| 0.00 | 1.12 | 0.00 | 0.82 | 16.56 | 343.62 | -46.71 | 70.75 | 0.7413 | -631.0 | -550.8 | |
| 0.00 | 0.95 | 0.00 | 0.77 | 17.40 | 338.94 | -51.38 | 70.68 | 0.7923 | 679.0 | 517.4 | |
| 0.00 | 1.90 | 0.00 | 1.53 | 17.18 | 338.97 | -51.35 | 70.94 | 0.7916 | 592.0 | 448.5 | |
| 0.00 | 1.21 | 0.00 | 1.04 | 21.00 | 336.68 | -53.64 | 66.74 | 0.8206 | 531.0 | 389.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
