SDO HMI 2014-11-09 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.71 | 0.00 | 9.86 | -22.10 | 9.57 | -20.75 | 142.56 | 0.5425 | 763.7 | 638.1 | |
|
previous
or next observation for the same group /

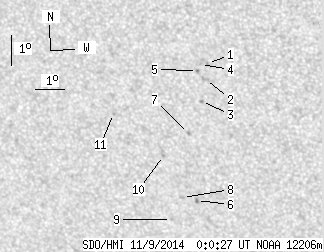

back to the solar disc SDO HMI 2014-11-09 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.60 | -20.06 | 10.54 | -19.78 | 141.34 | 0.5109 | 771.0 | 589.8 | |
| 0.00 | 3.79 | 0.00 | 2.19 | -20.58 | 10.41 | -19.92 | 141.82 | 0.5180 | 733.0 | 594.5 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -21.30 | 10.17 | -20.15 | 142.41 | 0.5284 | 969.0 | 764.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -20.10 | 10.30 | -20.02 | 141.06 | 0.5136 | 747.0 | 657.8 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -20.29 | 10.18 | -20.15 | 141.14 | 0.5170 | 709.0 | 608.1 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -24.60 | 9.47 | -20.86 | 145.35 | 0.5716 | 926.0 | 779.4 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -22.37 | 9.56 | -20.76 | 142.91 | 0.5457 | 839.0 | 726.6 | |
| 0.00 | 1.64 | 0.00 | 0.99 | -24.51 | 8.99 | -21.33 | 144.67 | 0.5745 | 806.0 | 594.7 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -25.27 | 8.46 | -21.86 | 144.86 | 0.5871 | 615.0 | 468.3 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -23.12 | 8.57 | -21.75 | 142.56 | 0.5627 | 634.0 | 579.7 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -21.77 | 7.07 | -23.25 | 139.10 | 0.5622 | 652.0 | 620.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
