SDO HMI 2014-11-09 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.57 | 0.00 | 3.87 | -9.54 | 337.03 | -52.74 | 104.47 | 0.8111 | -110.4 | -171.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

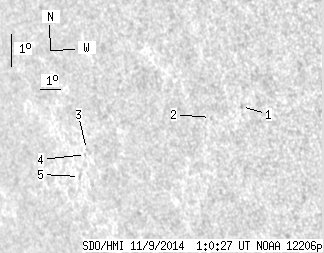

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.96 | -7.97 | 342.70 | -47.07 | 103.96 | 0.7496 | 587.0 | 484.5 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -8.37 | 341.24 | -48.53 | 104.09 | 0.7666 | 453.0 | 376.8 | |
| 0.00 | 0.78 | 0.00 | 0.69 | -9.65 | 334.93 | -54.84 | 104.11 | 0.8333 | -655.0 | -542.6 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -9.81 | 334.84 | -54.93 | 104.28 | 0.8344 | -341.0 | -414.0 | |
| 0.00 | 1.90 | 0.00 | 1.72 | -10.51 | 334.33 | -55.44 | 104.98 | 0.8403 | -596.0 | -440.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
