SDO HMI 2014-11-09 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.31 | 41.21 | 2.26 | 21.95 | -15.21 | 19.86 | -9.37 | 155.26 | 0.3605 | -76.9 | -101.0 | |
|
previous
or next observation for the same group /

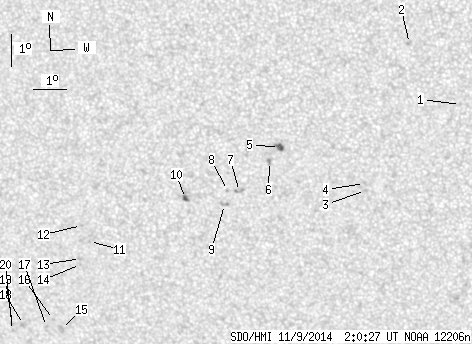

back to the solar disc SDO HMI 2014-11-09 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.62 | 28.32 | -0.90 | 176.63 | 0.2634 | 692.0 | 589.1 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -9.75 | 26.79 | -2.43 | 169.71 | 0.2349 | 718.0 | 579.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -14.29 | 25.39 | -3.83 | 168.08 | 0.3144 | 854.0 | 703.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.07 | 25.37 | -3.85 | 167.84 | 0.3110 | 803.0 | 671.8 | |
| 2.67 | 5.69 | 1.39 | 2.96 | -12.97 | 22.79 | -6.43 | 158.96 | 0.3056 | 1171.1 | 801.9 | |
| 0.00 | 2.41 | 0.00 | 1.26 | -13.40 | 22.47 | -6.75 | 158.55 | 0.3143 | 1003.0 | 770.6 | |
| 0.00 | 3.62 | 0.00 | 1.90 | -14.34 | 21.51 | -7.71 | 157.03 | 0.3346 | 894.0 | 677.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.31 | 21.14 | -8.08 | 156.02 | 0.3366 | 799.0 | 622.7 | |
| 0.00 | 3.28 | 0.00 | 1.73 | -14.75 | 21.03 | -8.19 | 156.27 | 0.3439 | -709.0 | -686.9 | |
| 1.64 | 4.48 | 0.87 | 2.37 | -14.58 | 19.83 | -9.39 | 153.02 | 0.3498 | -958.3 | -708.4 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -15.96 | 16.74 | -12.48 | 148.01 | 0.3938 | -839.0 | -720.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -15.46 | 16.52 | -12.70 | 146.84 | 0.3891 | -876.0 | -709.8 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -16.50 | 16.42 | -12.80 | 148.11 | 0.4038 | -777.0 | -741.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.69 | 16.41 | -12.81 | 148.34 | 0.4065 | -687.0 | -557.6 | |
| 0.00 | 3.79 | 0.00 | 2.09 | -18.74 | 15.64 | -13.58 | 149.51 | 0.4401 | -726.0 | -649.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -18.45 | 15.41 | -13.81 | 148.73 | 0.4383 | -702.0 | -634.4 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -18.68 | 15.16 | -14.06 | 148.57 | 0.4433 | -839.0 | -665.5 | |
| 0.00 | 2.59 | 0.00 | 1.43 | -18.63 | 14.42 | -14.80 | 147.20 | 0.4487 | -604.0 | -679.4 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -18.60 | 14.07 | -15.15 | 146.55 | 0.4514 | -716.0 | -633.1 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -18.83 | 14.05 | -15.18 | 146.81 | 0.4545 | -641.0 | -522.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
