SDO HMI 2014-11-09 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.94 | 41.66 | 15.28 | 189.05 | -11.58 | 305.55 | -83.12 | 102.05 | 0.9947 | -323.1 | -370.3 | |
|
previous
or next observation for the same group /

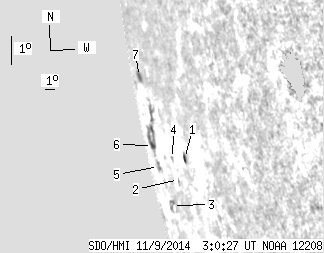

back to the solar disc SDO HMI 2014-11-09 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.19 | 0.00 | 7.98 | -11.60 | 311.07 | -77.60 | 102.59 | 0.9812 | 96.0 | 31.5 | |
| 0.00 | 0.43 | 0.00 | 1.27 | -12.35 | 309.34 | -79.34 | 103.17 | 0.9867 | 66.0 | 50.2 | |
| 0.00 | 4.92 | 0.00 | 20.19 | -13.31 | 306.82 | -81.85 | 103.89 | 0.9929 | -278.0 | -301.7 | |
| 0.00 | 1.55 | 0.00 | 4.73 | -11.73 | 309.05 | -79.62 | 102.52 | 0.9873 | -112.0 | -93.2 | |
| 0.00 | 3.88 | 0.00 | 18.84 | -12.20 | 305.41 | -83.27 | 102.66 | 0.9953 | -537.0 | -481.7 | |
| 1.90 | 23.20 | 9.92 | 112.46 | -11.59 | 304.91 | -83.76 | 102.00 | 0.9960 | -534.9 | -466.0 | |
| 1.04 | 4.49 | 5.36 | 23.58 | -9.49 | 304.88 | -83.79 | 99.90 | 0.9958 | -89.7 | -69.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
