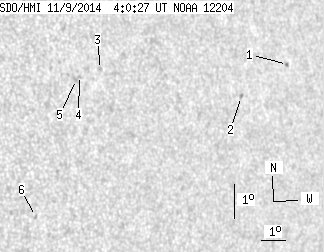

SDO HMI 2014-11-09 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.24 | 0.00 | 6.16 | 4.70 | 70.16 | 42.04 | 273.05 | 0.6694 | 139.5 | 102.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 1.08 | 5.38 | 76.09 | 47.97 | 274.05 | 0.7437 | -614.0 | -475.2 | |
| 0.00 | 1.73 | 0.00 | 1.22 | 4.52 | 73.99 | 45.87 | 272.87 | 0.7188 | -297.0 | -368.6 | |
| 0.00 | 1.81 | 0.00 | 1.17 | 5.57 | 68.31 | 40.18 | 274.44 | 0.6464 | 177.0 | 161.0 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 5.42 | 67.48 | 39.35 | 274.24 | 0.6353 | 489.0 | 484.9 | |
| 0.00 | 2.16 | 0.00 | 1.38 | 5.31 | 67.35 | 39.23 | 274.06 | 0.6336 | 783.0 | 596.3 | |
| 0.00 | 1.29 | 0.00 | 0.81 | 1.30 | 65.60 | 37.48 | 267.52 | 0.6111 | 299.0 | 427.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
