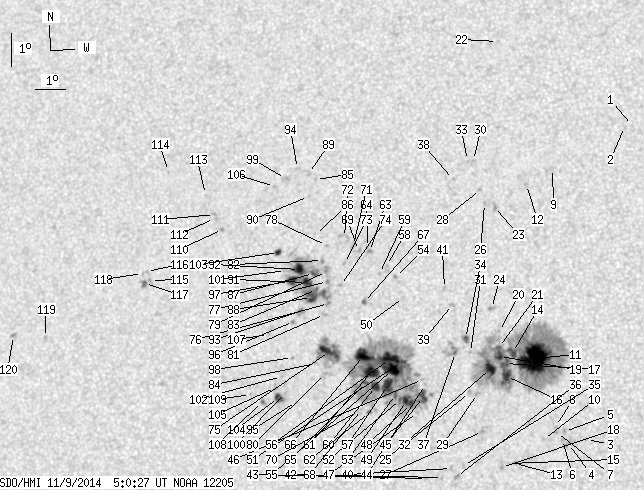

SDO HMI 2014-11-09 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 231.70 | 1093.44 | 121.54 | 573.58 | 14.96 | 12.20 | -15.38 | 51.52 | 0.3275 | -316.0 | -165.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | 21.95 | 18.50 | -9.07 | 24.79 | 0.3504 | -13.0 | 4.3 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 21.92 | 18.25 | -9.33 | 25.44 | 0.3517 | -2.0 | -0.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 12.33 | 17.54 | -10.04 | 47.88 | 0.2306 | -796.0 | -637.1 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 12.21 | 16.99 | -10.59 | 49.77 | 0.2363 | -882.0 | -785.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 12.57 | 16.85 | -10.73 | 48.96 | 0.2420 | -1080.0 | -930.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.33 | 16.80 | -10.78 | 49.87 | 0.2401 | -975.0 | -792.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.53 | 16.60 | -10.97 | 49.69 | 0.2448 | -1190.0 | -1002.1 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 12.71 | 16.57 | -11.01 | 49.22 | 0.2472 | -657.0 | -539.5 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 20.59 | 16.01 | -11.57 | 32.52 | 0.3508 | 14.0 | -8.5 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 12.32 | 16.21 | -11.37 | 51.35 | 0.2477 | -951.0 | -577.2 | |
| 50.12 | 402.23 | 25.84 | 207.68 | 14.76 | 15.78 | -11.80 | 45.25 | 0.2797 | -1476.4 | -451.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 20.08 | 15.21 | -12.37 | 35.11 | 0.3514 | -727.0 | -559.7 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 11.59 | 15.34 | -12.24 | 55.70 | 0.2524 | -986.0 | -757.3 | |
| 5.78 | -11.00 | 2.99 | -11.00 | 14.93 | 15.11 | -12.47 | 46.33 | 0.2897 | -771.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 11.59 | 15.16 | -12.42 | 56.10 | 0.2550 | -827.0 | -674.1 | |
| 11.30 | -11.00 | 5.83 | -11.00 | 14.20 | 14.96 | -12.61 | 48.59 | 0.2835 | -1231.7 | 999999 | |
| 5.78 | -11.00 | 2.99 | -11.00 | 14.60 | 14.91 | -12.67 | 47.65 | 0.2884 | -1112.0 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 11.47 | 14.94 | -12.63 | 56.94 | 0.2569 | -984.0 | -857.1 | |
| 4.57 | -11.00 | 2.37 | -11.00 | 14.81 | 14.71 | -12.87 | 47.53 | 0.2932 | -914.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 15.56 | 14.66 | -12.92 | 45.71 | 0.3021 | -527.0 | -464.2 | |
| 1.73 | -11.00 | 0.89 | -11.00 | 15.08 | 14.66 | -12.92 | 46.93 | 0.2968 | -737.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 24.55 | 13.83 | -13.75 | 30.96 | 0.4221 | -616.0 | -505.2 | |
| 0.00 | 3.28 | 0.00 | 1.73 | 19.39 | 14.23 | -13.35 | 38.40 | 0.3522 | -881.0 | -738.8 | |
| 0.00 | 2.85 | 0.00 | 1.48 | 16.26 | 14.36 | -13.21 | 44.67 | 0.3135 | -1025.0 | -744.3 | |
| 8.28 | -11.00 | 4.29 | -11.00 | 14.44 | 14.45 | -13.13 | 49.06 | 0.2926 | -1203.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 19.48 | 13.89 | -13.68 | 38.90 | 0.3567 | -787.0 | -675.3 | |
| 0.00 | 2.24 | 0.00 | 1.16 | 12.54 | 14.30 | -13.28 | 54.79 | 0.2756 | -859.0 | -702.7 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 19.91 | 13.73 | -13.85 | 38.43 | 0.3637 | -524.0 | -417.8 | |
| 0.00 | 2.50 | 0.00 | 1.29 | 13.68 | 14.08 | -13.50 | 51.88 | 0.2895 | -884.0 | -711.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 20.80 | 13.42 | -14.16 | 37.44 | 0.3778 | -817.0 | -710.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 14.92 | 13.79 | -13.79 | 49.15 | 0.3059 | -611.0 | -507.0 | |
| 0.00 | 2.67 | 0.00 | 1.38 | 13.71 | 13.83 | -13.75 | 52.30 | 0.2931 | -784.0 | -634.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 20.80 | 13.22 | -14.36 | 37.81 | 0.3798 | -724.0 | -577.7 | |
| 1.73 | 4.23 | 0.90 | 2.20 | 15.34 | 13.60 | -13.98 | 48.45 | 0.3126 | -859.2 | -607.2 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 11.51 | 13.76 | -13.82 | 59.00 | 0.2743 | -855.0 | -689.6 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 11.18 | 13.56 | -14.02 | 60.42 | 0.2745 | -1019.0 | -886.4 | |
| 0.43 | 13.46 | 0.22 | 7.02 | 14.91 | 13.31 | -14.27 | 50.09 | 0.3118 | -908.2 | -463.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 20.20 | 12.82 | -14.76 | 39.61 | 0.3766 | -848.0 | -663.9 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 16.37 | 13.11 | -14.46 | 46.93 | 0.3295 | -606.0 | -556.1 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 11.42 | 13.39 | -14.19 | 59.94 | 0.2789 | -854.0 | -716.8 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 16.85 | 12.82 | -14.76 | 46.38 | 0.3383 | 802.0 | 682.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 11.14 | 13.12 | -14.46 | 61.25 | 0.2806 | -693.0 | -568.1 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 11.10 | 12.62 | -14.96 | 62.13 | 0.2877 | -832.0 | -637.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 13.93 | 12.43 | -15.15 | 54.25 | 0.3140 | 904.0 | 803.3 | |
| 5.78 | 368.50 | 3.01 | 193.53 | 13.57 | 12.39 | -15.19 | 55.30 | 0.3112 | 359.1 | -107.9 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 14.08 | 12.32 | -15.26 | 54.04 | 0.3168 | 985.0 | 764.8 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 13.08 | 12.23 | -15.35 | 56.90 | 0.3092 | -214.0 | -247.6 | |
| 2.67 | -45.00 | 1.39 | -45.00 | 13.35 | 12.02 | -15.56 | 56.49 | 0.3144 | -1364.8 | 999999 | |
| 5.69 | -45.00 | 2.97 | -45.00 | 13.44 | 11.86 | -15.72 | 56.52 | 0.3174 | -1273.1 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 16.56 | 11.53 | -16.05 | 49.33 | 0.3510 | 62.0 | 53.5 | |
| 1.73 | -45.00 | 0.90 | -45.00 | 14.61 | 11.65 | -15.93 | 53.78 | 0.3307 | 1309.7 | 999999 | |
| 0.60 | -45.00 | 0.32 | -45.00 | 13.47 | 11.66 | -15.91 | 56.75 | 0.3203 | -1182.0 | 999999 | |
| 1.90 | -45.00 | 0.99 | -45.00 | 13.61 | 11.49 | -16.08 | 56.61 | 0.3239 | -1154.6 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 17.19 | 11.21 | -16.37 | 48.45 | 0.3613 | 989.0 | 787.4 | |
| 10.18 | -45.00 | 5.34 | -45.00 | 14.37 | 11.35 | -16.23 | 54.89 | 0.3325 | -1002.5 | 999999 | |
| 11.47 | -45.00 | 6.03 | -45.00 | 14.70 | 11.26 | -16.32 | 54.19 | 0.3367 | 1300.3 | 999999 | |
| 11.30 | -45.00 | 5.93 | -45.00 | 13.88 | 11.22 | -16.36 | 56.33 | 0.3300 | -1302.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 17.52 | 10.89 | -16.69 | 48.26 | 0.3686 | 771.0 | 674.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 17.28 | 10.68 | -16.89 | 49.12 | 0.3686 | 822.0 | 609.7 | |
| 6.21 | -45.00 | 3.26 | -45.00 | 13.84 | 10.84 | -16.74 | 57.00 | 0.3349 | -1127.6 | 999999 | |
| 13.54 | -45.00 | 7.13 | -45.00 | 14.30 | 10.68 | -16.90 | 56.09 | 0.3409 | -1023.6 | 999999 | |
| 0.60 | 1.73 | 0.32 | 0.90 | 13.06 | 10.70 | -16.87 | 59.26 | 0.3304 | -806.7 | -663.2 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 17.94 | 10.29 | -17.28 | 48.33 | 0.3801 | 1037.0 | 922.4 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 18.07 | 10.22 | -17.36 | 48.20 | 0.3822 | 821.0 | 686.8 | |
| 1.90 | -45.00 | 1.00 | -45.00 | 13.96 | 10.51 | -17.07 | 57.18 | 0.3404 | -964.4 | 999999 | |
| 14.58 | -45.00 | 7.70 | -45.00 | 14.78 | 10.38 | -17.19 | 55.33 | 0.3491 | 1054.8 | 999999 | |
| 0.78 | 3.02 | 0.41 | 1.61 | 16.38 | 10.25 | -17.33 | 51.77 | 0.3654 | -888.1 | -723.4 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 13.14 | 10.44 | -17.13 | 59.39 | 0.3348 | -303.0 | -287.8 | |
| 0.00 | 2.67 | 0.00 | 1.43 | 17.97 | 9.93 | -17.65 | 48.84 | 0.3847 | 869.0 | 830.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 13.08 | 10.32 | -17.26 | 59.73 | 0.3361 | -248.0 | -248.2 | |
| 0.00 | 3.11 | 0.00 | 1.67 | 18.15 | 9.75 | -17.83 | 48.74 | 0.3887 | 727.0 | 678.2 | |
| 0.00 | 5.95 | 0.00 | 3.21 | 18.36 | 9.43 | -18.15 | 48.79 | 0.3947 | 480.0 | 599.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 17.56 | 9.51 | -18.06 | 50.30 | 0.3859 | 955.0 | 793.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 16.89 | 9.45 | -18.13 | 51.83 | 0.3803 | 927.0 | 728.6 | |
| 11.99 | 44.77 | 6.37 | 23.80 | 14.88 | 9.28 | -18.30 | 56.64 | 0.3649 | 1130.8 | 401.1 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 16.33 | 9.11 | -18.47 | 53.53 | 0.3796 | 1070.0 | 836.5 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 17.00 | 9.01 | -18.56 | 52.21 | 0.3869 | 1094.0 | 941.1 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 18.10 | 8.86 | -18.71 | 50.13 | 0.3991 | 737.0 | 604.2 | |
| 0.00 | 5.35 | 0.00 | 2.88 | 17.31 | 8.95 | -18.63 | 51.65 | 0.3906 | 1030.0 | 825.7 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 14.21 | 9.21 | -18.37 | 58.34 | 0.3605 | -732.0 | -565.3 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 16.00 | 9.01 | -18.56 | 54.41 | 0.3779 | 1143.0 | 847.0 | |
| 0.00 | 2.07 | 0.00 | 1.12 | 17.64 | 8.78 | -18.80 | 51.19 | 0.3958 | 727.0 | 609.7 | |
| 0.60 | 96.61 | 0.32 | 52.08 | 16.75 | 8.68 | -18.90 | 53.21 | 0.3890 | 785.6 | 151.3 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 14.51 | 8.86 | -18.72 | 58.08 | 0.3677 | -599.0 | -423.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 20.13 | 8.26 | -19.32 | 47.07 | 0.4261 | 815.0 | 658.8 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 18.44 | 8.46 | -19.12 | 50.02 | 0.4071 | 480.0 | 490.7 | |
| 1.73 | -83.00 | 0.93 | -83.00 | 17.24 | 8.53 | -19.05 | 52.38 | 0.3953 | 805.2 | 999999 | |
| 6.38 | -83.00 | 3.43 | -83.00 | 16.51 | 8.54 | -19.04 | 53.93 | 0.3886 | -186.1 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.32 | 20.31 | 8.00 | -19.58 | 47.09 | 0.4309 | 691.0 | 556.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 19.60 | 8.09 | -19.49 | 48.28 | 0.4228 | 786.0 | 568.0 | |
| 7.16 | -83.00 | 3.86 | -83.00 | 16.96 | 8.33 | -19.25 | 53.24 | 0.3953 | 1019.7 | 999999 | |
| 8.97 | -83.00 | 4.85 | -83.00 | 17.35 | 8.05 | -19.52 | 52.78 | 0.4023 | -1047.1 | 999999 | |
| 0.60 | 5.00 | 0.32 | 2.69 | 16.07 | 8.19 | -19.39 | 55.34 | 0.3895 | -819.0 | -724.2 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 20.46 | 7.61 | -19.97 | 47.35 | 0.4369 | 589.0 | 520.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 13.35 | 8.34 | -19.24 | 61.52 | 0.3663 | 759.0 | 514.8 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 15.77 | 8.02 | -19.55 | 56.23 | 0.3892 | -875.0 | -738.8 | |
| 6.81 | -83.00 | 3.68 | -83.00 | 17.01 | 7.86 | -19.72 | 53.74 | 0.4018 | -1127.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 14.67 | 8.10 | -19.48 | 58.63 | 0.3795 | -726.0 | -576.5 | |
| 0.00 | 3.71 | 0.00 | 2.04 | 20.14 | 7.25 | -20.33 | 48.41 | 0.4380 | 881.0 | 666.7 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 13.61 | 7.96 | -19.62 | 61.31 | 0.3736 | 891.0 | 775.7 | |
| 0.00 | 2.42 | 0.00 | 1.31 | 17.31 | 7.60 | -19.98 | 53.45 | 0.4078 | -89.0 | -108.4 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 14.09 | 7.79 | -19.79 | 60.36 | 0.3795 | 772.0 | 602.5 | |
| 2.42 | 3.97 | 1.31 | 2.16 | 17.86 | 7.30 | -20.28 | 52.71 | 0.4164 | 753.1 | 548.8 | |
| 4.40 | 6.47 | 2.35 | 3.45 | 13.46 | 7.75 | -19.83 | 61.92 | 0.3756 | 1042.9 | 892.0 | |
| 0.00 | 2.50 | 0.00 | 1.34 | 13.76 | 7.62 | -19.95 | 61.34 | 0.3794 | 975.0 | 723.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 19.89 | 6.91 | -20.67 | 49.31 | 0.4396 | 857.0 | 715.1 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 15.36 | 7.24 | -20.33 | 58.09 | 0.3964 | -754.0 | -593.9 | |
| 0.52 | 2.67 | 0.28 | 1.43 | 13.33 | 7.24 | -20.34 | 62.79 | 0.3820 | 806.3 | 703.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.53 | 6.83 | -20.75 | 62.73 | 0.3892 | 534.0 | 424.5 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 18.53 | 5.34 | -22.24 | 53.75 | 0.4469 | 914.0 | 818.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 18.98 | 5.00 | -22.58 | 53.27 | 0.4549 | 815.0 | 693.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 18.86 | 5.02 | -22.56 | 53.48 | 0.4536 | 567.0 | 577.9 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 19.59 | 4.60 | -22.97 | 52.58 | 0.4649 | 598.0 | 511.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 20.27 | 3.22 | -24.36 | 52.84 | 0.4875 | 589.0 | 504.7 | |
| 0.00 | 1.55 | 0.00 | 0.87 | 16.91 | 3.11 | -24.47 | 59.14 | 0.4635 | 841.0 | 833.2 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 17.18 | 2.94 | -24.64 | 58.78 | 0.4677 | 739.0 | 664.1 | |
| 1.47 | 4.05 | 0.82 | 2.27 | 16.82 | 2.92 | -24.66 | 59.51 | 0.4654 | 871.6 | 672.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 17.12 | 2.81 | -24.77 | 59.02 | 0.4690 | 621.0 | 442.0 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 15.09 | 359.75 | -27.83 | 65.30 | 0.4982 | 909.0 | 725.7 | |
| 0.00 | 2.33 | 0.00 | 1.34 | 15.12 | 358.62 | -28.96 | 65.97 | 0.5138 | 774.0 | 682.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
