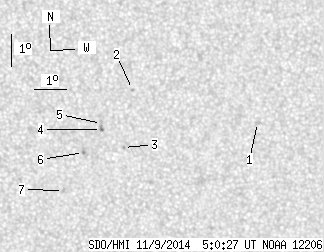

SDO HMI 2014-11-09 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.51 | 11.48 | 1.32 | 6.02 | -14.21 | 34.46 | 6.88 | 200.79 | 0.3290 | -498.0 | -496.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 2.42 | 1.14 | 1.28 | -13.80 | 38.32 | 10.74 | 211.38 | 0.3492 | 0.8 | -4.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -12.73 | 34.42 | 6.85 | 202.58 | 0.3042 | 614.0 | 590.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.53 | 34.20 | 6.62 | 199.82 | 0.3306 | -806.0 | -627.4 | |
| 0.35 | 2.50 | 0.18 | 1.31 | -13.97 | 33.50 | 5.93 | 198.45 | 0.3180 | -863.2 | -767.4 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -13.78 | 33.50 | 5.92 | 198.63 | 0.3150 | -745.0 | -567.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.68 | 32.97 | 5.39 | 196.22 | 0.3266 | -985.0 | -862.2 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -15.87 | 32.38 | 4.80 | 193.63 | 0.3430 | -706.0 | -524.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
