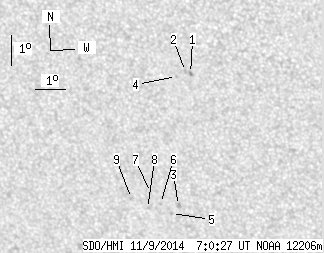

SDO HMI 2014-11-09 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.37 | 0.00 | 6.01 | -22.96 | 9.48 | -17.01 | 148.67 | 0.5206 | 704.7 | 629.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.78 | -20.14 | 10.56 | -15.92 | 147.15 | 0.4769 | 932.0 | 777.7 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -20.08 | 10.40 | -16.08 | 146.82 | 0.4774 | 733.0 | 621.6 | |
| 0.00 | 2.16 | 0.00 | 1.27 | -24.51 | 9.62 | -16.86 | 150.55 | 0.5390 | 975.0 | 796.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -20.24 | 10.09 | -16.40 | 146.53 | 0.4822 | 603.0 | 505.4 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -24.79 | 9.34 | -17.14 | 150.43 | 0.5444 | 576.0 | 511.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -24.46 | 9.02 | -17.47 | 149.64 | 0.5428 | 524.0 | 478.8 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -24.09 | 8.73 | -17.76 | 148.85 | 0.5405 | 618.0 | 560.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -24.63 | 8.54 | -17.94 | 149.16 | 0.5484 | 725.0 | 590.9 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -24.31 | 8.04 | -18.44 | 148.14 | 0.5483 | 656.0 | 521.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
