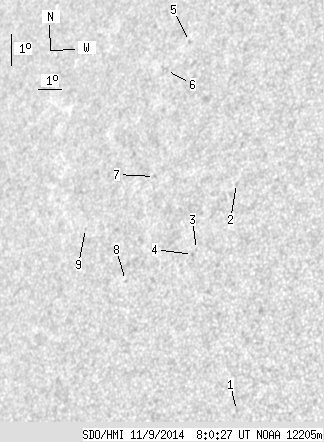

SDO HMI 2014-11-09 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.53 | 0.00 | 7.41 | 18.91 | 342.37 | -43.57 | 66.74 | 0.7126 | 67.0 | 119.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.56 | 12.22 | 346.64 | -39.30 | 75.08 | 0.6430 | -510.0 | -348.4 | |
| 0.00 | 1.38 | 0.00 | 0.93 | 19.09 | 345.02 | -40.92 | 65.45 | 0.6829 | -524.0 | -380.9 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 17.01 | 343.94 | -42.00 | 68.77 | 0.6888 | -588.0 | -509.7 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 16.85 | 343.82 | -42.12 | 69.04 | 0.6898 | -743.0 | -647.5 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 23.41 | 341.42 | -44.53 | 61.01 | 0.7380 | 590.0 | 553.5 | |
| 0.00 | 2.33 | 0.00 | 1.71 | 22.46 | 340.76 | -45.18 | 62.48 | 0.7414 | 617.0 | 471.8 | |
| 0.00 | 1.12 | 0.00 | 0.80 | 19.17 | 341.47 | -44.47 | 66.59 | 0.7234 | 579.0 | 522.3 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 15.95 | 341.20 | -44.74 | 71.04 | 0.7180 | 654.0 | 515.0 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 17.45 | 338.95 | -46.99 | 69.59 | 0.7467 | 528.0 | 476.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
