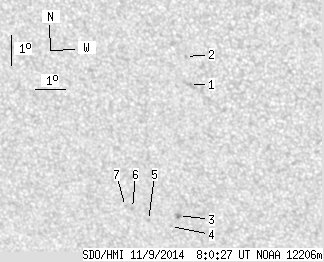

SDO HMI 2014-11-09 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.34 | 0.00 | 7.08 | -22.31 | 9.65 | -16.29 | 149.01 | 0.5068 | 715.3 | 609.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.92 | 0.00 | 2.76 | -20.14 | 10.51 | -15.43 | 147.95 | 0.4728 | 876.0 | 632.6 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -19.24 | 10.47 | -15.47 | 146.78 | 0.4616 | 603.0 | 341.3 | |
| 0.00 | 2.67 | 0.00 | 1.56 | -24.48 | 9.63 | -16.31 | 151.30 | 0.5346 | 1002.0 | 797.3 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -24.86 | 9.30 | -16.64 | 151.21 | 0.5416 | 620.0 | 505.0 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -24.67 | 8.58 | -17.37 | 149.99 | 0.5445 | 689.0 | 535.0 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -24.27 | 8.08 | -17.86 | 148.90 | 0.5433 | 622.0 | 533.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -24.21 | 7.85 | -18.09 | 148.52 | 0.5443 | 595.0 | 502.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
