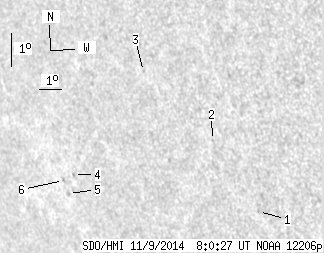

SDO HMI 2014-11-09 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.96 | 0.00 | 4.59 | -9.43 | 337.49 | -48.45 | 105.46 | 0.7671 | -10.2 | -75.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.72 | -10.63 | 343.08 | -42.86 | 108.85 | 0.7087 | 479.0 | 442.1 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -8.54 | 341.50 | -44.44 | 105.45 | 0.7207 | 572.0 | 462.1 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -6.57 | 338.80 | -47.14 | 102.06 | 0.7470 | 589.0 | 424.5 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -9.86 | 335.02 | -50.92 | 105.28 | 0.7951 | -518.0 | -474.9 | |
| 0.00 | 1.47 | 0.00 | 1.21 | -10.46 | 334.64 | -51.30 | 105.92 | 0.8003 | -652.0 | -523.2 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -10.07 | 334.49 | -51.45 | 105.40 | 0.8010 | -531.0 | -444.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
