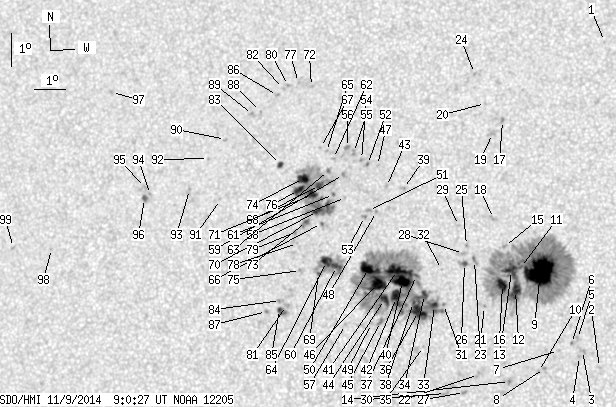

SDO HMI 2014-11-09 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 222.67 | 1072.26 | 115.63 | 557.14 | 14.93 | 12.25 | -13.15 | 47.11 | 0.2994 | -361.4 | -178.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.45 | 21.80 | 17.47 | -7.93 | 22.15 | 0.3411 | -639.0 | -515.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.84 | 17.71 | -7.68 | 41.94 | 0.1966 | -947.0 | -745.1 | |
| 0.00 | 3.28 | 0.00 | 1.66 | 12.35 | 17.18 | -8.22 | 42.12 | 0.2091 | -743.0 | -715.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.17 | 17.09 | -8.30 | 43.02 | 0.2079 | -939.0 | -854.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 12.71 | 17.01 | -8.38 | 41.52 | 0.2155 | -944.0 | -780.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 12.56 | 16.83 | -8.56 | 42.60 | 0.2157 | -895.0 | -818.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 12.34 | 16.44 | -8.96 | 44.56 | 0.2177 | -911.0 | -749.6 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 11.80 | 16.03 | -9.37 | 47.67 | 0.2165 | -1014.0 | -798.9 | |
| 52.01 | 406.04 | 26.63 | 208.10 | 14.72 | 15.79 | -9.60 | 39.55 | 0.2546 | -1430.3 | -444.3 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 11.71 | 15.85 | -9.55 | 48.53 | 0.2178 | -894.0 | -763.2 | |
| 0.26 | -9.00 | 0.13 | -9.00 | 14.84 | 15.16 | -10.23 | 41.01 | 0.2629 | -958.7 | 999999 | |
| 11.64 | -9.00 | 5.96 | -9.00 | 14.14 | 15.04 | -10.36 | 43.21 | 0.2558 | -1204.1 | 999999 | |
| 11.04 | -9.00 | 5.67 | -9.00 | 14.74 | 14.89 | -10.51 | 41.99 | 0.2648 | -979.6 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 11.40 | 14.96 | -10.43 | 52.05 | 0.2261 | -1072.0 | -859.3 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 15.47 | 14.63 | -10.76 | 40.82 | 0.2766 | -625.0 | -439.8 | |
| 8.37 | -9.00 | 4.29 | -9.00 | 14.32 | 14.63 | -10.77 | 43.82 | 0.2627 | -1172.4 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 19.32 | 14.34 | -11.06 | 33.47 | 0.3296 | -975.0 | -790.4 | |
| 0.00 | 2.59 | 0.00 | 1.34 | 16.32 | 14.24 | -11.16 | 39.80 | 0.2914 | -845.0 | -761.1 | |
| 0.00 | 4.57 | 0.00 | 2.39 | 18.92 | 14.05 | -11.35 | 34.89 | 0.3269 | -871.0 | -615.7 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 19.84 | 13.76 | -11.64 | 33.89 | 0.3418 | -715.0 | -456.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 13.65 | 14.10 | -11.30 | 47.04 | 0.2613 | -837.0 | -772.4 | |
| 0.00 | 3.79 | 0.00 | 1.94 | 11.60 | 14.00 | -11.40 | 53.72 | 0.2412 | -828.0 | -702.7 | |
| 0.00 | 3.10 | 0.00 | 1.60 | 15.03 | 13.71 | -11.68 | 44.19 | 0.2818 | -978.0 | -774.0 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 20.77 | 13.33 | -12.07 | 33.25 | 0.3580 | -885.0 | -800.0 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 15.49 | 13.44 | -11.96 | 43.71 | 0.2903 | -722.0 | -587.8 | |
| 1.29 | 4.48 | 0.67 | 2.32 | 14.94 | 13.40 | -11.99 | 45.16 | 0.2844 | -962.7 | -664.0 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 11.06 | 13.59 | -11.81 | 56.53 | 0.2418 | -1048.0 | -802.4 | |
| 0.00 | 2.07 | 0.00 | 1.07 | 15.24 | 13.36 | -12.04 | 44.50 | 0.2884 | -791.0 | -540.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 16.09 | 13.15 | -12.25 | 42.91 | 0.3007 | -659.0 | -515.6 | |
| 0.00 | 2.93 | 0.00 | 1.50 | 11.02 | 13.00 | -12.39 | 57.88 | 0.2499 | -885.0 | -726.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 13.69 | 12.81 | -12.58 | 49.88 | 0.2780 | 1015.0 | 805.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 14.75 | 12.69 | -12.70 | 47.26 | 0.2908 | 635.0 | 426.9 | |
| 3.28 | 368.61 | 1.69 | 191.59 | 13.66 | 12.53 | -12.86 | 50.57 | 0.2813 | 412.3 | -124.6 | |
| 2.41 | -33.00 | 1.25 | -33.00 | 13.99 | 12.20 | -13.19 | 50.35 | 0.2890 | 761.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 12.42 | 12.25 | -13.14 | 54.80 | 0.2729 | 634.0 | 499.7 | |
| 11.90 | -33.00 | 6.15 | -33.00 | 13.47 | 12.04 | -13.35 | 52.12 | 0.2859 | -1261.1 | 999999 | |
| 0.86 | -33.00 | 0.45 | -33.00 | 14.56 | 11.91 | -13.48 | 49.40 | 0.2985 | 953.9 | 999999 | |
| 1.12 | -33.00 | 0.58 | -33.00 | 13.74 | 11.87 | -13.53 | 51.70 | 0.2908 | -749.8 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.13 | 17.20 | 11.32 | -14.07 | 44.25 | 0.3344 | 955.0 | 781.2 | |
| 12.68 | -33.00 | 6.58 | -33.00 | 14.37 | 11.48 | -13.91 | 50.74 | 0.3021 | -901.5 | 999999 | |
| 13.80 | -33.00 | 7.18 | -33.00 | 14.70 | 11.31 | -14.09 | 50.22 | 0.3077 | 1155.1 | 999999 | |
| 11.13 | -33.00 | 5.77 | -33.00 | 13.89 | 11.33 | -14.07 | 52.36 | 0.2994 | -1301.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 17.25 | 10.77 | -14.62 | 45.19 | 0.3414 | 790.0 | 567.6 | |
| 6.55 | -33.00 | 3.41 | -33.00 | 13.82 | 10.95 | -14.44 | 53.23 | 0.3037 | -1160.9 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.83 | 13.16 | 10.86 | -14.53 | 55.23 | 0.2987 | -973.0 | -754.9 | |
| 16.73 | -33.00 | 8.72 | -33.00 | 14.30 | 10.70 | -14.70 | 52.40 | 0.3117 | -962.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 17.89 | 10.43 | -14.97 | 44.46 | 0.3525 | 810.0 | 684.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 16.48 | 10.51 | -14.88 | 47.39 | 0.3362 | -926.0 | -681.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 13.09 | 10.58 | -14.81 | 55.90 | 0.3020 | -370.0 | -366.1 | |
| 13.97 | -33.00 | 7.30 | -33.00 | 14.75 | 10.38 | -15.01 | 51.81 | 0.3201 | 1001.2 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.27 | 16.51 | 10.25 | -15.14 | 47.80 | 0.3396 | -915.0 | -735.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 17.92 | 10.10 | -15.29 | 45.00 | 0.3565 | 998.0 | 902.4 | |
| 0.00 | 1.90 | 0.00 | 1.00 | 16.33 | 10.14 | -15.26 | 48.42 | 0.3391 | -995.0 | -780.4 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 18.07 | 9.89 | -15.50 | 45.06 | 0.3605 | 930.0 | 720.7 | |
| 0.00 | 2.85 | 0.00 | 1.51 | 18.28 | 9.62 | -15.78 | 45.11 | 0.3661 | 714.0 | 722.9 | |
| 0.00 | 2.76 | 0.00 | 1.47 | 18.43 | 9.41 | -15.99 | 45.17 | 0.3701 | 703.0 | 625.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 13.05 | 9.77 | -15.63 | 57.37 | 0.3130 | -725.0 | -529.4 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 16.90 | 9.48 | -15.92 | 48.29 | 0.3530 | 610.0 | 381.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 17.60 | 9.35 | -16.04 | 46.98 | 0.3619 | 1071.0 | 861.8 | |
| 4.48 | 41.57 | 2.36 | 21.86 | 14.80 | 9.36 | -16.04 | 53.43 | 0.3340 | 1147.2 | 460.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 16.98 | 9.08 | -16.31 | 48.76 | 0.3588 | 1067.0 | 941.3 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 18.08 | 8.98 | -16.41 | 46.59 | 0.3714 | 838.0 | 633.1 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 17.71 | 8.86 | -16.54 | 47.57 | 0.3690 | 756.0 | 687.3 | |
| 7.16 | -60.00 | 3.77 | -60.00 | 14.94 | 9.03 | -16.37 | 53.60 | 0.3398 | 1022.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 18.30 | 8.73 | -16.66 | 46.56 | 0.3765 | 700.0 | 602.3 | |
| 0.34 | 1.90 | 0.18 | 1.00 | 16.09 | 8.77 | -16.62 | 51.27 | 0.3539 | 963.0 | 846.0 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 18.41 | 8.53 | -16.87 | 46.66 | 0.3802 | 635.0 | 475.5 | |
| 3.45 | 115.14 | 1.84 | 61.29 | 17.25 | 8.61 | -16.79 | 48.96 | 0.3673 | 824.1 | 139.4 | |
| 0.60 | -60.00 | 0.32 | -60.00 | 14.58 | 8.80 | -16.60 | 54.87 | 0.3395 | -629.9 | 999999 | |
| 3.45 | -68.00 | 1.83 | -68.00 | 16.46 | 8.61 | -16.78 | 50.70 | 0.3594 | -699.9 | 999999 | |
| 5.61 | -68.00 | 2.98 | -68.00 | 16.97 | 8.40 | -16.99 | 49.89 | 0.3671 | 986.7 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 20.29 | 8.03 | -17.37 | 43.85 | 0.4059 | 838.0 | 663.9 | |
| 1.03 | 5.43 | 0.55 | 2.88 | 16.15 | 8.28 | -17.11 | 51.91 | 0.3606 | -849.4 | -665.5 | |
| 7.59 | -68.00 | 4.05 | -68.00 | 17.46 | 8.07 | -17.33 | 49.37 | 0.3760 | -994.0 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.28 | 14.66 | 8.22 | -17.18 | 55.54 | 0.3481 | -636.0 | -356.8 | |
| 5.26 | -68.00 | 2.81 | -68.00 | 17.09 | 7.94 | -17.46 | 50.36 | 0.3740 | -1085.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 20.41 | 7.58 | -17.81 | 44.32 | 0.4121 | 784.0 | 540.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 15.47 | 8.05 | -17.34 | 53.82 | 0.3575 | -733.0 | -609.8 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 15.81 | 7.93 | -17.47 | 53.24 | 0.3621 | -896.0 | -835.2 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 20.31 | 7.26 | -18.13 | 44.99 | 0.4146 | 826.0 | 658.3 | |
| 0.00 | 2.50 | 0.00 | 1.32 | 13.59 | 7.85 | -17.55 | 58.73 | 0.3443 | 902.0 | 748.7 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 20.21 | 7.11 | -18.29 | 45.39 | 0.4154 | 808.0 | 628.2 | |
| 2.07 | 3.54 | 1.11 | 1.90 | 17.87 | 7.27 | -18.12 | 49.70 | 0.3899 | 737.3 | 555.6 | |
| 0.00 | 2.76 | 0.00 | 1.46 | 13.74 | 7.65 | -17.75 | 58.63 | 0.3484 | 804.0 | 796.3 | |
| 1.21 | 6.12 | 0.64 | 3.23 | 13.47 | 7.63 | -17.76 | 59.34 | 0.3464 | 1027.7 | 916.1 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 19.99 | 6.93 | -18.46 | 46.06 | 0.4151 | 792.0 | 718.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 13.40 | 7.22 | -18.17 | 60.04 | 0.3517 | 937.0 | 755.1 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 19.49 | 6.43 | -18.97 | 47.73 | 0.4159 | 837.0 | 730.4 | |
| 0.00 | 2.67 | 0.00 | 1.46 | 19.39 | 6.17 | -19.22 | 48.27 | 0.4179 | 814.0 | 700.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 18.61 | 5.37 | -20.03 | 50.87 | 0.4202 | 893.0 | 724.5 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 16.77 | 5.41 | -19.98 | 54.55 | 0.4034 | 732.0 | 670.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 18.01 | 4.87 | -20.52 | 52.67 | 0.4211 | 772.0 | 596.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 17.05 | 4.35 | -21.04 | 55.25 | 0.4196 | 718.0 | 532.4 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 16.87 | 3.07 | -22.32 | 57.05 | 0.4350 | 930.0 | 747.4 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 17.08 | 2.88 | -22.52 | 56.83 | 0.4392 | 750.0 | 642.5 | |
| 1.38 | 2.93 | 0.76 | 1.61 | 16.75 | 2.88 | -22.51 | 57.50 | 0.4365 | 839.6 | 771.4 | |
| 0.00 | 2.07 | 0.00 | 1.17 | 19.97 | 1.30 | -24.09 | 53.06 | 0.4821 | -633.0 | -450.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 15.15 | 359.94 | -25.46 | 63.41 | 0.4659 | 881.0 | 652.6 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 15.15 | 358.64 | -26.76 | 64.40 | 0.4839 | 727.0 | 545.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
