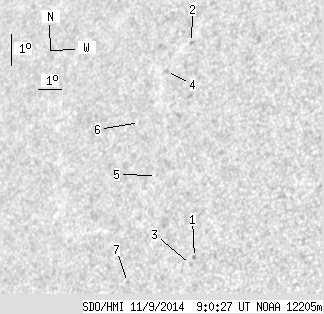

SDO HMI 2014-11-09 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.49 | 0.00 | 5.32 | 19.78 | 341.81 | -43.58 | 65.54 | 0.7157 | 211.9 | 190.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.76 | 16.78 | 343.84 | -41.55 | 68.95 | 0.6828 | -787.0 | -714.5 | |
| 0.00 | 1.29 | 0.00 | 0.94 | 23.40 | 341.47 | -43.92 | 60.78 | 0.7318 | 704.0 | 570.6 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 16.56 | 343.73 | -41.66 | 69.30 | 0.6835 | -718.0 | -610.8 | |
| 0.00 | 1.81 | 0.00 | 1.32 | 22.45 | 340.73 | -44.66 | 62.30 | 0.7361 | 688.0 | 562.0 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 19.22 | 341.49 | -43.91 | 66.33 | 0.7173 | 563.0 | 490.5 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 20.82 | 340.16 | -45.24 | 64.64 | 0.7368 | 350.0 | 341.9 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 15.91 | 341.24 | -44.16 | 70.93 | 0.7112 | 683.0 | 579.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
