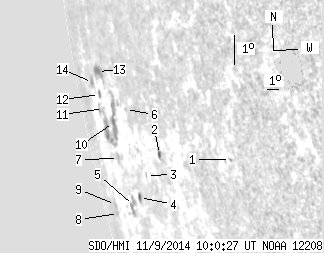

SDO HMI 2014-11-09 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.24 | 79.44 | 20.65 | 235.07 | -11.29 | 305.78 | -79.07 | 102.13 | 0.9852 | -143.8 | -303.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 1.49 | -11.41 | 317.94 | -66.91 | 103.77 | 0.9300 | 497.0 | 439.2 | |
| 1.21 | 3.71 | 2.25 | 6.93 | -11.64 | 311.35 | -73.49 | 103.09 | 0.9653 | 202.3 | 192.7 | |
| 0.00 | 1.21 | 0.00 | 2.61 | -12.41 | 309.24 | -75.61 | 103.63 | 0.9744 | -55.0 | -44.5 | |
| 0.00 | 3.19 | 0.00 | 7.87 | -13.19 | 307.55 | -77.30 | 104.23 | 0.9807 | 4.0 | -65.7 | |
| 0.00 | 8.11 | 0.00 | 22.66 | -13.51 | 306.29 | -78.56 | 104.42 | 0.9848 | -393.0 | -377.0 | |
| 0.00 | 0.26 | 0.00 | 0.60 | -10.46 | 308.17 | -76.68 | 101.52 | 0.9776 | 97.0 | 89.7 | |
| 0.00 | 3.36 | 0.00 | 9.97 | -12.11 | 305.52 | -79.33 | 102.93 | 0.9866 | -491.0 | -465.7 | |
| 0.00 | 0.95 | 0.00 | 3.89 | -13.97 | 302.80 | -82.05 | 104.54 | 0.9934 | 89.0 | 75.2 | |
| 0.00 | 2.16 | 0.00 | 9.12 | -13.71 | 302.59 | -82.25 | 104.25 | 0.9938 | 194.0 | 156.7 | |
| 1.81 | 40.88 | 5.07 | 122.84 | -10.99 | 305.93 | -78.92 | 101.83 | 0.9851 | -540.8 | -436.4 | |
| 0.00 | 0.26 | 0.00 | 0.83 | -10.65 | 304.57 | -80.27 | 101.35 | 0.9887 | -488.0 | -513.3 | |
| 0.86 | 2.16 | 2.83 | 7.08 | -10.24 | 304.29 | -80.56 | 100.92 | 0.9893 | -222.2 | -187.0 | |
| 3.36 | 9.57 | 10.50 | 29.80 | -9.51 | 304.69 | -80.16 | 100.22 | 0.9881 | -91.1 | -157.4 | |
| 0.00 | 2.50 | 0.00 | 9.38 | -9.94 | 303.23 | -81.61 | 100.52 | 0.9917 | 10.0 | 107.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
