SDO HMI 2014-11-09 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.60 | 0.00 | 8.83 | -21.64 | 9.50 | -14.81 | 150.73 | 0.4868 | 613.2 | 526.9 | |
|
previous
or next observation for the same group /

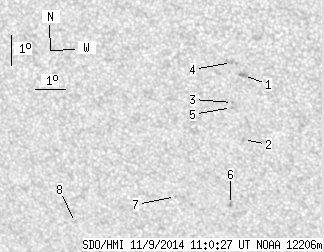

back to the solar disc SDO HMI 2014-11-09 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.45 | 0.00 | 1.92 | -20.22 | 10.51 | -13.80 | 150.81 | 0.4607 | 926.0 | 734.8 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -22.31 | 10.30 | -14.00 | 152.70 | 0.4901 | 804.0 | 633.4 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -21.10 | 10.06 | -14.24 | 151.03 | 0.4758 | 814.0 | 693.1 | |
| 0.00 | 4.91 | 0.00 | 2.73 | -19.80 | 10.15 | -14.15 | 149.71 | 0.4579 | 725.0 | 503.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -21.27 | 10.01 | -14.29 | 151.12 | 0.4783 | 803.0 | 683.1 | |
| 0.00 | 2.16 | 0.00 | 1.25 | -24.49 | 9.62 | -14.68 | 153.74 | 0.5233 | 913.0 | 755.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -24.25 | 7.79 | -16.51 | 150.78 | 0.5329 | 632.0 | 511.8 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -25.20 | 4.20 | -20.11 | 146.88 | 0.5714 | -711.0 | -548.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
