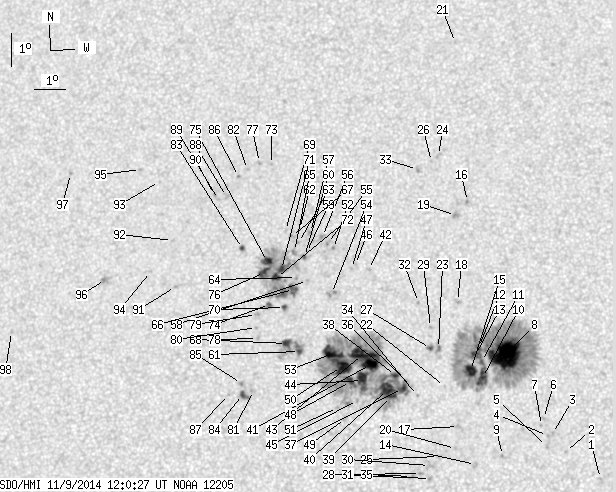

SDO HMI 2014-11-09 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 249.61 | 1071.08 | 128.70 | 553.07 | 14.93 | 12.35 | -11.41 | 43.05 | 0.2789 | -356.9 | -188.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.52 | 11.01 | 18.80 | -4.95 | 32.90 | 0.1567 | -925.0 | -723.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 11.81 | 17.72 | -6.03 | 35.35 | 0.1786 | -824.0 | -658.8 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 12.35 | 17.32 | -6.44 | 35.37 | 0.1901 | -900.0 | -780.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.29 | 17.16 | -6.59 | 36.19 | 0.1908 | -839.0 | -700.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 11.96 | 17.14 | -6.61 | 37.36 | 0.1866 | -867.0 | -722.1 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 12.80 | 17.03 | -6.73 | 35.17 | 0.1992 | -932.0 | -754.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 12.59 | 16.97 | -6.78 | 36.03 | 0.1969 | -977.0 | -803.0 | |
| 54.31 | 406.32 | 27.69 | 207.32 | 14.72 | 15.80 | -7.96 | 34.43 | 0.2379 | -1375.6 | -420.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 11.68 | 15.80 | -7.95 | 43.46 | 0.1979 | -913.0 | -778.3 | |
| 11.38 | -8.00 | 5.80 | -8.00 | 14.02 | 15.11 | -8.64 | 38.49 | 0.2354 | -1179.2 | 999999 | |
| 1.81 | -8.00 | 0.92 | -8.00 | 14.50 | 15.06 | -8.69 | 37.36 | 0.2422 | -1165.8 | 999999 | |
| 2.50 | -8.00 | 1.28 | -8.00 | 14.93 | 14.95 | -8.80 | 36.62 | 0.2490 | -830.7 | 999999 | |
| 6.03 | -8.00 | 3.08 | -8.00 | 14.71 | 14.87 | -8.89 | 37.42 | 0.2470 | -971.4 | 999999 | |
| 0.00 | 3.10 | 0.00 | 1.57 | 11.40 | 14.98 | -8.77 | 47.22 | 0.2046 | -1001.0 | -803.9 | |
| 10.35 | -8.00 | 5.28 | -8.00 | 14.23 | 14.73 | -9.02 | 39.11 | 0.2421 | -1154.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 19.38 | 14.39 | -9.36 | 29.20 | 0.3160 | -939.0 | -811.0 | |
| 0.00 | 2.24 | 0.00 | 1.14 | 12.54 | 14.42 | -9.33 | 45.05 | 0.2247 | -909.0 | -717.0 | |
| 0.00 | 2.76 | 0.00 | 1.42 | 16.32 | 14.24 | -9.52 | 35.47 | 0.2748 | -860.0 | -712.6 | |
| 0.00 | 3.53 | 0.00 | 1.84 | 18.95 | 14.03 | -9.72 | 30.85 | 0.3128 | -895.0 | -779.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.88 | 14.35 | -9.40 | 47.47 | 0.2179 | -804.0 | -656.3 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 24.36 | 13.66 | -10.09 | 24.09 | 0.3928 | -693.0 | -526.1 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 13.74 | 13.95 | -9.81 | 42.80 | 0.2447 | -700.0 | -549.3 | |
| 0.00 | 4.31 | 0.00 | 2.21 | 14.89 | 13.71 | -10.05 | 40.35 | 0.2616 | -1016.0 | -803.2 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 20.80 | 13.37 | -10.38 | 29.44 | 0.3443 | -680.0 | -706.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 11.63 | 13.84 | -9.91 | 49.81 | 0.2218 | -836.0 | -714.9 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 20.61 | 13.16 | -10.60 | 30.23 | 0.3434 | -824.0 | -702.8 | |
| 1.21 | 3.79 | 0.62 | 1.95 | 14.88 | 13.46 | -10.30 | 41.04 | 0.2643 | -952.6 | -717.6 | |
| 0.00 | 2.24 | 0.00 | 1.14 | 10.97 | 13.62 | -10.14 | 52.81 | 0.2179 | -899.0 | -664.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.52 | 13.43 | -10.33 | 39.53 | 0.2726 | -707.0 | -572.4 | |
| 0.00 | 4.22 | 0.00 | 2.15 | 11.36 | 13.57 | -10.18 | 51.51 | 0.2225 | -1012.0 | -770.0 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 11.12 | 13.30 | -10.45 | 53.09 | 0.2236 | -916.0 | -803.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 16.28 | 13.01 | -10.74 | 38.83 | 0.2866 | -646.0 | -601.1 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 20.36 | 12.73 | -11.03 | 31.63 | 0.3436 | -750.0 | -626.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 13.46 | 13.12 | -10.64 | 45.87 | 0.2512 | 696.0 | 447.3 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 11.03 | 13.03 | -10.72 | 54.11 | 0.2265 | -871.0 | -767.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 13.73 | 12.92 | -10.83 | 45.61 | 0.2567 | 677.0 | 502.6 | |
| 4.74 | 376.58 | 2.43 | 194.38 | 13.67 | 12.64 | -11.11 | 46.49 | 0.2594 | 255.1 | -171.6 | |
| 2.67 | -37.00 | 1.37 | -37.00 | 14.06 | 12.41 | -11.35 | 45.98 | 0.2667 | 834.6 | 999999 | |
| 4.14 | -37.00 | 2.12 | -37.00 | 13.42 | 12.31 | -11.44 | 48.02 | 0.2607 | -1333.4 | 999999 | |
| 14.31 | -37.00 | 7.35 | -37.00 | 13.63 | 12.18 | -11.58 | 47.74 | 0.2647 | -1162.1 | 999999 | |
| 16.73 | -37.00 | 8.63 | -37.00 | 14.38 | 11.61 | -12.15 | 46.98 | 0.2801 | -749.3 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 17.27 | 11.37 | -12.39 | 40.54 | 0.3165 | 923.0 | 692.7 | |
| 22.07 | -37.00 | 11.41 | -37.00 | 14.68 | 11.34 | -12.41 | 46.79 | 0.2866 | 882.3 | 999999 | |
| 13.97 | -37.00 | 7.20 | -37.00 | 13.89 | 11.38 | -12.37 | 48.82 | 0.2776 | -1247.2 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 13.29 | 11.26 | -12.50 | 50.83 | 0.2729 | -868.0 | -714.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 17.41 | 10.95 | -12.81 | 41.15 | 0.3229 | 713.0 | 555.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.29 | 10.83 | -12.93 | 41.68 | 0.3227 | 842.0 | 686.5 | |
| 5.95 | -37.00 | 3.07 | -37.00 | 13.86 | 11.01 | -12.75 | 49.74 | 0.2820 | -1165.5 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.29 | 12.74 | 10.91 | -12.84 | 53.19 | 0.2720 | 561.0 | 424.8 | |
| 20.09 | -37.00 | 10.39 | -37.00 | 14.31 | 10.70 | -13.05 | 49.16 | 0.2906 | -887.3 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 13.07 | 10.64 | -13.11 | 52.76 | 0.2788 | -696.0 | -407.4 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 17.89 | 10.21 | -13.55 | 41.69 | 0.3367 | 989.0 | 928.9 | |
| 16.90 | -37.00 | 8.77 | -37.00 | 14.70 | 10.39 | -13.36 | 48.76 | 0.2986 | 909.0 | 999999 | |
| 0.00 | 3.88 | 0.00 | 2.03 | 16.52 | 10.24 | -13.51 | 44.62 | 0.3204 | -756.0 | -838.3 | |
| 0.00 | 2.41 | 0.00 | 1.27 | 18.05 | 10.00 | -13.75 | 41.79 | 0.3407 | 877.0 | 738.5 | |
| 0.00 | 2.76 | 0.00 | 1.46 | 18.26 | 9.82 | -13.93 | 41.70 | 0.3452 | 783.0 | 693.4 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 18.38 | 9.43 | -14.33 | 42.24 | 0.3509 | 740.0 | 655.3 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 16.91 | 9.45 | -14.31 | 45.32 | 0.3340 | 786.0 | 635.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 17.76 | 9.35 | -14.41 | 43.66 | 0.3447 | 821.0 | 754.5 | |
| 0.86 | 3.71 | 0.45 | 1.95 | 17.64 | 9.29 | -14.46 | 44.02 | 0.3439 | 1111.1 | 805.7 | |
| 2.24 | 30.26 | 1.17 | 15.80 | 14.74 | 9.35 | -14.41 | 50.69 | 0.3124 | 1114.9 | 499.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.46 | 9.06 | -14.69 | 42.75 | 0.3559 | 613.0 | 471.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 18.06 | 9.07 | -14.69 | 43.56 | 0.3514 | 897.0 | 730.2 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 16.99 | 9.09 | -14.67 | 45.81 | 0.3392 | 1061.0 | 869.9 | |
| 0.00 | 3.28 | 0.00 | 1.73 | 17.79 | 8.96 | -14.80 | 44.34 | 0.3494 | 781.0 | 741.5 | |
| 5.09 | 118.89 | 2.67 | 62.77 | 16.62 | 9.02 | -14.73 | 46.76 | 0.3360 | 1161.4 | 112.2 | |
| 0.00 | 2.41 | 0.00 | 1.28 | 18.24 | 8.82 | -14.93 | 43.64 | 0.3561 | 713.0 | 650.5 | |
| 4.66 | -61.00 | 2.43 | -61.00 | 14.98 | 8.92 | -14.84 | 50.88 | 0.3202 | 996.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 18.43 | 8.61 | -15.14 | 43.66 | 0.3606 | 651.0 | 479.5 | |
| 1.38 | 2.33 | 0.72 | 1.22 | 16.07 | 8.78 | -14.98 | 48.49 | 0.3331 | 971.6 | 816.5 | |
| 3.97 | -66.00 | 2.09 | -66.00 | 17.23 | 8.59 | -15.17 | 46.22 | 0.3477 | 774.2 | 999999 | |
| 4.57 | -66.00 | 2.41 | -66.00 | 16.98 | 8.45 | -15.31 | 47.01 | 0.3467 | 964.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 20.46 | 7.96 | -15.80 | 40.95 | 0.3908 | 796.0 | 657.3 | |
| 0.95 | 3.53 | 0.50 | 1.86 | 16.16 | 8.29 | -15.47 | 49.16 | 0.3400 | -795.7 | -798.3 | |
| 6.21 | -66.00 | 3.29 | -66.00 | 17.47 | 8.12 | -15.64 | 46.54 | 0.3558 | -1015.2 | 999999 | |
| 6.90 | -66.00 | 3.65 | -66.00 | 17.13 | 8.05 | -15.71 | 47.39 | 0.3531 | -1089.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 20.51 | 7.56 | -16.20 | 41.53 | 0.3958 | 830.0 | 692.0 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 15.12 | 7.98 | -15.77 | 52.17 | 0.3337 | -843.0 | -644.2 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 15.85 | 7.90 | -15.86 | 50.57 | 0.3419 | -890.0 | -734.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 15.45 | 7.93 | -15.83 | 51.45 | 0.3376 | -918.0 | -755.8 | |
| 0.00 | 2.50 | 0.00 | 1.31 | 13.55 | 7.97 | -15.79 | 56.23 | 0.3196 | 798.0 | 684.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 20.29 | 7.19 | -16.57 | 42.55 | 0.3972 | 816.0 | 628.1 | |
| 1.29 | 2.50 | 0.69 | 1.33 | 17.85 | 7.27 | -16.49 | 47.17 | 0.3699 | 787.1 | 633.9 | |
| 2.33 | 5.52 | 1.22 | 2.89 | 13.42 | 7.63 | -16.13 | 57.11 | 0.3232 | 997.9 | 898.3 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 13.75 | 7.57 | -16.18 | 56.31 | 0.3268 | 894.0 | 768.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 20.07 | 6.91 | -16.84 | 43.40 | 0.3978 | 840.0 | 806.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 13.41 | 7.18 | -16.57 | 57.79 | 0.3294 | 822.0 | 526.6 | |
| 0.00 | 3.10 | 0.00 | 1.67 | 19.44 | 6.58 | -17.17 | 45.10 | 0.3947 | 764.0 | 712.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 19.35 | 6.33 | -17.42 | 45.69 | 0.3966 | 831.0 | 681.0 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 19.50 | 6.18 | -17.57 | 45.63 | 0.3999 | 824.0 | 727.2 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 16.66 | 5.20 | -18.55 | 52.87 | 0.3840 | 835.0 | 570.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 18.06 | 4.95 | -18.80 | 50.27 | 0.4001 | 812.0 | 586.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 19.87 | 4.31 | -19.45 | 47.67 | 0.4254 | 567.0 | 476.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 17.10 | 4.33 | -19.42 | 53.11 | 0.3991 | 703.0 | 589.1 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 20.23 | 3.62 | -20.13 | 47.93 | 0.4369 | 743.0 | 619.9 | |
| 0.00 | 5.69 | 0.00 | 3.10 | 16.83 | 2.88 | -20.88 | 55.50 | 0.4157 | 853.0 | 756.3 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 20.06 | 1.27 | -22.49 | 51.14 | 0.4633 | -672.0 | -587.5 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 15.18 | 359.93 | -23.83 | 61.97 | 0.4436 | 877.0 | 630.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
