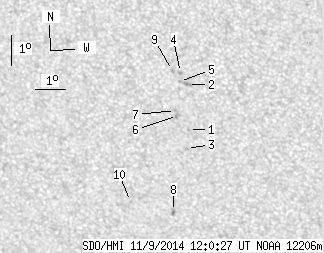

SDO HMI 2014-11-09 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.38 | 0.00 | 9.22 | -21.50 | 10.06 | -13.70 | 152.33 | 0.4769 | 772.4 | 656.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.44 | -21.72 | 10.41 | -13.35 | 153.19 | 0.4775 | 755.0 | 680.0 | |
| 0.00 | 3.19 | 0.00 | 1.77 | -20.25 | 10.51 | -13.25 | 151.81 | 0.4569 | 879.0 | 707.8 | |
| 0.00 | 1.55 | 0.00 | 0.88 | -22.34 | 10.28 | -13.48 | 153.60 | 0.4868 | 759.0 | 597.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -19.86 | 10.31 | -13.44 | 151.03 | 0.4532 | 782.0 | 688.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -20.15 | 10.26 | -13.50 | 151.25 | 0.4576 | 654.0 | 492.9 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -21.26 | 10.09 | -13.67 | 152.17 | 0.4736 | 769.0 | 711.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -21.10 | 10.04 | -13.72 | 151.91 | 0.4718 | 769.0 | 546.5 | |
| 0.00 | 2.76 | 0.00 | 1.60 | -24.45 | 9.62 | -14.14 | 154.54 | 0.5193 | 915.0 | 731.9 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -19.80 | 10.06 | -13.69 | 150.50 | 0.4543 | 704.0 | 550.0 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -24.14 | 8.20 | -15.55 | 152.08 | 0.5246 | 738.0 | 654.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
