SDO HMI 2014-11-09 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.11 | 0.00 | 5.48 | 19.35 | 342.53 | -40.67 | 65.10 | 0.6812 | -162.8 | -65.7 | |
|
previous
or next observation for the same group /

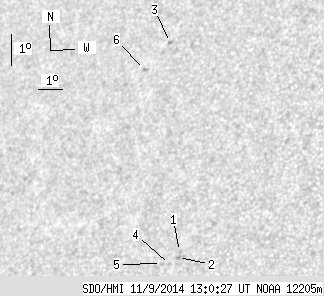

back to the solar disc SDO HMI 2014-11-09 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.28 | 16.97 | 343.82 | -39.38 | 67.91 | 0.6573 | -574.0 | -502.2 | |
| 0.00 | 1.81 | 0.00 | 1.19 | 16.79 | 343.83 | -39.38 | 68.18 | 0.6566 | -761.0 | -664.4 | |
| 0.00 | 1.90 | 0.00 | 1.33 | 23.40 | 341.42 | -41.79 | 59.88 | 0.7094 | 729.0 | 564.6 | |
| 0.00 | 1.38 | 0.00 | 0.91 | 16.56 | 343.52 | -39.69 | 68.62 | 0.6597 | -479.0 | -441.8 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 16.58 | 343.19 | -40.01 | 68.71 | 0.6637 | -522.0 | -409.2 | |
| 0.00 | 1.38 | 0.00 | 0.97 | 22.52 | 340.62 | -42.58 | 61.40 | 0.7143 | 630.0 | 562.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
