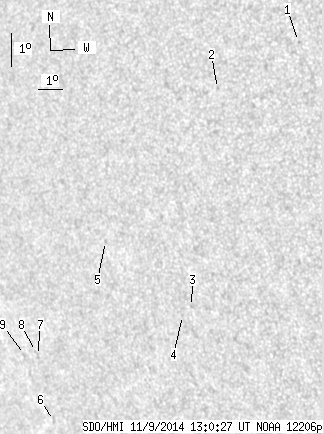

SDO HMI 2014-11-09 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.68 | 0.00 | 7.77 | -8.47 | 337.91 | -45.29 | 104.81 | 0.7287 | 76.6 | -137.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.64 | -0.11 | 346.68 | -36.53 | 94.88 | 0.5996 | 554.0 | 386.5 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -1.62 | 343.59 | -39.61 | 96.72 | 0.6441 | 644.0 | 465.7 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -8.23 | 342.07 | -41.13 | 106.12 | 0.6800 | 532.0 | 451.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -8.51 | 341.67 | -41.53 | 106.39 | 0.6859 | 474.0 | 497.0 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -6.40 | 338.77 | -44.43 | 102.52 | 0.7150 | 540.0 | 376.2 | |
| 0.00 | 2.50 | 0.00 | 1.92 | -11.98 | 335.55 | -47.65 | 108.88 | 0.7664 | -508.0 | -464.6 | |
| 0.00 | 1.81 | 0.00 | 1.38 | -10.01 | 335.26 | -47.95 | 106.28 | 0.7641 | -582.0 | -500.5 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -9.89 | 335.19 | -48.02 | 106.11 | 0.7645 | -492.0 | -558.7 | |
| 0.00 | 1.90 | 0.00 | 1.47 | -10.00 | 334.67 | -48.54 | 106.10 | 0.7705 | -473.0 | -383.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
