SDO HMI 2014-11-09 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.32 | 0.00 | 4.97 | 20.26 | 341.82 | -40.84 | 63.93 | 0.6860 | -40.6 | -26.4 | |
|
previous
or next observation for the same group /

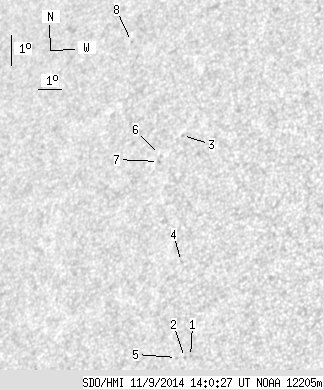

back to the solar disc SDO HMI 2014-11-09 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.67 | 16.59 | 343.77 | -38.89 | 68.29 | 0.6499 | -594.0 | -483.2 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 16.55 | 343.54 | -39.12 | 68.43 | 0.6526 | -670.0 | -497.4 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 23.39 | 341.36 | -41.30 | 59.68 | 0.7041 | 682.0 | 590.4 | |
| 0.00 | 1.12 | 0.00 | 0.75 | 19.48 | 342.63 | -40.03 | 64.53 | 0.6740 | -653.0 | -471.8 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 16.54 | 343.22 | -39.44 | 68.57 | 0.6565 | -542.0 | -391.2 | |
| 0.00 | 0.34 | 0.00 | 0.24 | 22.75 | 340.60 | -42.06 | 60.86 | 0.7096 | 284.0 | 353.5 | |
| 0.00 | 1.29 | 0.00 | 0.90 | 22.53 | 340.64 | -42.02 | 61.14 | 0.7083 | 669.0 | 566.9 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 26.27 | 337.81 | -44.85 | 57.48 | 0.7523 | 499.0 | 359.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
