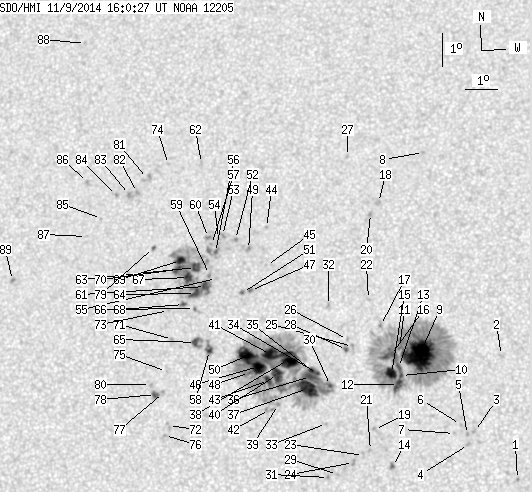

SDO HMI 2014-11-09 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 257.54 | 1081.14 | 131.88 | 554.09 | 14.92 | 12.47 | -9.08 | 36.59 | 0.2537 | -385.3 | -209.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.94 | 18.84 | -2.71 | 19.69 | 0.1386 | -955.0 | -789.7 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 14.67 | 18.32 | -3.24 | 15.73 | 0.2026 | -891.0 | -573.3 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 12.38 | 17.52 | -4.03 | 23.94 | 0.1701 | -942.0 | -831.2 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 11.99 | 17.35 | -4.21 | 25.88 | 0.1653 | -939.0 | -751.8 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 12.29 | 17.31 | -4.25 | 25.27 | 0.1702 | -1046.0 | -910.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.59 | 17.09 | -4.46 | 25.62 | 0.1765 | -962.0 | -719.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 12.32 | 16.92 | -4.64 | 27.22 | 0.1737 | -941.0 | -765.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 20.89 | 15.72 | -5.83 | 17.60 | 0.3154 | -801.0 | -691.5 | |
| 56.79 | 404.68 | 28.82 | 205.45 | 14.69 | 15.79 | -5.76 | 26.52 | 0.2186 | -1416.5 | -436.7 | |
| 1.72 | -9.00 | 0.87 | -9.00 | 14.06 | 15.26 | -6.30 | 30.08 | 0.2134 | -1264.0 | 999999 | |
| 0.78 | -9.00 | 0.39 | -9.00 | 14.90 | 15.17 | -6.39 | 28.46 | 0.2266 | -765.4 | 999999 | |
| 6.55 | -9.00 | 3.32 | -9.00 | 13.78 | 15.17 | -6.39 | 31.09 | 0.2102 | -1146.8 | 999999 | |
| 2.84 | -9.00 | 1.44 | -9.00 | 14.30 | 15.16 | -6.40 | 29.89 | 0.2178 | -1264.0 | 999999 | |
| 0.60 | 3.19 | 0.30 | 1.60 | 11.32 | 15.05 | -6.51 | 39.13 | 0.1770 | -1162.6 | -904.0 | |
| 9.13 | -9.00 | 4.63 | -9.00 | 14.11 | 14.95 | -6.61 | 31.13 | 0.2169 | -1255.9 | 999999 | |
| 9.57 | -9.00 | 4.86 | -9.00 | 14.66 | 14.90 | -6.66 | 30.01 | 0.2253 | -977.1 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.41 | 15.57 | 14.56 | -7.00 | 29.22 | 0.2414 | -860.0 | -644.7 | |
| 0.00 | 2.76 | 0.00 | 1.43 | 19.33 | 14.36 | -7.20 | 23.39 | 0.2993 | -800.0 | -746.8 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 12.43 | 14.47 | -7.09 | 37.71 | 0.1979 | -896.0 | -755.4 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 18.99 | 14.12 | -7.44 | 24.57 | 0.2957 | -981.0 | -853.3 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 11.79 | 14.36 | -7.19 | 40.22 | 0.1907 | -854.0 | -738.2 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 16.35 | 14.16 | -7.40 | 28.96 | 0.2563 | -844.0 | -641.2 | |
| 0.00 | 2.33 | 0.00 | 1.17 | 11.64 | 14.15 | -7.40 | 41.55 | 0.1911 | -649.0 | -587.0 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 11.43 | 13.85 | -7.70 | 43.44 | 0.1920 | -996.0 | -909.5 | |
| 0.00 | 2.15 | 0.00 | 1.10 | 14.92 | 13.72 | -7.84 | 33.54 | 0.2397 | -967.0 | -758.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.13 | 13.55 | -8.00 | 33.58 | 0.2442 | -706.0 | -581.9 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 20.75 | 13.30 | -8.26 | 24.31 | 0.3277 | -745.0 | -588.9 | |
| 0.95 | 3.45 | 0.48 | 1.76 | 14.83 | 13.53 | -8.02 | 34.37 | 0.2401 | -980.7 | -709.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 11.07 | 13.37 | -8.18 | 46.50 | 0.1935 | -910.0 | -757.3 | |
| 1.55 | 406.14 | 0.79 | 207.91 | 13.74 | 13.08 | -8.48 | 38.72 | 0.2301 | 824.8 | -202.1 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 10.98 | 13.10 | -8.46 | 47.77 | 0.1958 | -960.0 | -796.6 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 16.16 | 12.92 | -8.64 | 33.24 | 0.2644 | -791.0 | -648.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 12.60 | 12.99 | -8.57 | 42.43 | 0.2164 | 848.0 | 665.7 | |
| 1.12 | -30.00 | 0.57 | -30.00 | 14.10 | 12.66 | -8.90 | 39.05 | 0.2392 | 619.7 | 999999 | |
| 2.50 | -30.00 | 1.28 | -30.00 | 14.19 | 12.47 | -9.09 | 39.39 | 0.2424 | 868.8 | 999999 | |
| 6.81 | -30.00 | 3.47 | -30.00 | 14.01 | 12.45 | -9.11 | 39.96 | 0.2403 | -310.6 | 999999 | |
| 20.42 | -30.00 | 10.41 | -30.00 | 13.64 | 12.37 | -9.19 | 41.22 | 0.2366 | -1272.1 | 999999 | |
| 23.09 | -30.00 | 11.82 | -30.00 | 14.51 | 11.74 | -9.81 | 40.65 | 0.2544 | -304.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 13.15 | 11.49 | -10.07 | 45.23 | 0.2409 | -54.0 | -211.8 | |
| 11.98 | -30.00 | 6.13 | -30.00 | 14.06 | 11.42 | -10.14 | 42.79 | 0.2524 | -1232.0 | 999999 | |
| 16.46 | -30.00 | 8.45 | -30.00 | 14.66 | 11.18 | -10.38 | 41.83 | 0.2626 | 922.2 | 999999 | |
| 0.00 | 4.48 | 0.00 | 2.29 | 13.00 | 11.22 | -10.34 | 46.44 | 0.2424 | -79.0 | -174.2 | |
| 4.39 | -30.00 | 2.25 | -30.00 | 13.87 | 11.15 | -10.41 | 44.05 | 0.2534 | -1225.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.53 | 10.84 | -10.72 | 34.09 | 0.3160 | 852.0 | 675.0 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 17.37 | 10.91 | -10.65 | 36.21 | 0.2999 | 692.0 | 621.1 | |
| 14.56 | -30.00 | 7.47 | -30.00 | 14.29 | 10.82 | -10.74 | 43.76 | 0.2622 | -993.6 | 999999 | |
| 0.60 | 1.64 | 0.31 | 0.85 | 16.60 | 10.45 | -11.11 | 39.01 | 0.2947 | -1018.0 | -812.3 | |
| 1.46 | -30.00 | 0.75 | -30.00 | 14.11 | 10.55 | -11.01 | 44.96 | 0.2633 | -938.8 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.12 | 17.85 | 10.31 | -11.25 | 36.69 | 0.3121 | 998.0 | 848.0 | |
| 19.65 | -30.00 | 10.10 | -30.00 | 14.62 | 10.46 | -11.10 | 43.79 | 0.2703 | 884.3 | 999999 | |
| 0.60 | 1.72 | 0.31 | 0.89 | 16.53 | 10.20 | -11.36 | 39.76 | 0.2965 | -958.3 | -769.8 | |
| 0.00 | 2.76 | 0.00 | 1.44 | 18.15 | 9.88 | -11.68 | 37.10 | 0.3204 | 893.0 | 756.1 | |
| 0.00 | 2.76 | 0.00 | 1.44 | 18.27 | 9.45 | -12.10 | 37.83 | 0.3261 | 750.0 | 607.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.18 | 9.33 | -12.23 | 38.28 | 0.3262 | 710.0 | 616.5 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 16.95 | 9.35 | -12.21 | 40.82 | 0.3108 | 890.0 | 667.0 | |
| 0.60 | 10.77 | 0.32 | 5.63 | 17.75 | 9.27 | -12.29 | 39.31 | 0.3215 | 1233.7 | 832.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 17.99 | 9.12 | -12.44 | 39.13 | 0.3260 | 923.0 | 770.2 | |
| 2.50 | 9.31 | 1.29 | 4.81 | 14.76 | 9.26 | -12.30 | 46.28 | 0.2862 | 1070.6 | 673.4 | |
| 0.00 | 2.24 | 0.00 | 1.17 | 17.07 | 9.12 | -12.44 | 41.07 | 0.3148 | 1021.0 | 874.6 | |
| 0.00 | 3.27 | 0.00 | 1.72 | 18.20 | 9.01 | -12.55 | 38.94 | 0.3299 | 920.0 | 733.0 | |
| 4.91 | 124.01 | 2.56 | 64.85 | 16.70 | 9.02 | -12.54 | 42.11 | 0.3115 | 1139.9 | 46.7 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 20.48 | 8.60 | -12.95 | 35.55 | 0.3627 | 796.0 | 637.1 | |
| 6.20 | -61.00 | 3.24 | -61.00 | 17.28 | 8.66 | -12.90 | 41.62 | 0.3223 | 862.2 | 999999 | |
| 5.69 | -61.00 | 2.96 | -61.00 | 16.49 | 8.71 | -12.84 | 43.27 | 0.3124 | -552.4 | 999999 | |
| 3.45 | 9.48 | 1.79 | 4.91 | 15.00 | 8.81 | -12.75 | 46.68 | 0.2943 | 989.0 | 785.8 | |
| 0.34 | 3.36 | 0.18 | 1.75 | 16.03 | 8.71 | -12.84 | 44.34 | 0.3071 | 922.0 | 759.7 | |
| 6.12 | -61.00 | 3.20 | -61.00 | 16.97 | 8.46 | -13.10 | 42.72 | 0.3209 | 998.9 | 999999 | |
| 1.29 | 2.76 | 0.67 | 1.44 | 16.15 | 8.36 | -13.20 | 44.82 | 0.3126 | -844.2 | -674.1 | |
| 5.43 | -61.00 | 2.85 | -61.00 | 17.49 | 8.17 | -13.39 | 42.21 | 0.3303 | -1076.9 | 999999 | |
| 3.79 | -61.00 | 1.99 | -61.00 | 17.21 | 8.09 | -13.47 | 42.96 | 0.3279 | -1175.3 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.12 | 15.08 | 8.08 | -13.48 | 48.01 | 0.3042 | -792.0 | -677.8 | |
| 0.00 | 2.50 | 0.00 | 1.29 | 12.49 | 8.10 | -13.46 | 55.17 | 0.2780 | -652.0 | -629.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 15.96 | 7.89 | -13.67 | 46.22 | 0.3160 | -842.0 | -567.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 20.44 | 7.53 | -14.02 | 37.75 | 0.3725 | 818.0 | 593.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 14.11 | 7.95 | -13.61 | 50.81 | 0.2958 | 715.0 | 516.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 12.18 | 7.99 | -13.57 | 56.30 | 0.2768 | -809.0 | -671.8 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 13.48 | 7.89 | -13.67 | 52.68 | 0.2902 | 1044.0 | 789.2 | |
| 2.41 | 4.31 | 1.25 | 2.23 | 13.41 | 7.64 | -13.91 | 53.34 | 0.2929 | 1063.4 | 829.7 | |
| 0.69 | 1.64 | 0.36 | 0.86 | 17.88 | 7.27 | -14.29 | 43.18 | 0.3448 | 793.0 | 625.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 13.71 | 7.47 | -14.09 | 52.83 | 0.2981 | 840.0 | 742.1 | |
| 0.00 | 5.26 | 0.00 | 2.81 | 20.00 | 6.89 | -14.67 | 39.76 | 0.3737 | 674.0 | 711.0 | |
| 0.00 | 2.24 | 0.00 | 1.19 | 19.56 | 6.60 | -14.95 | 41.09 | 0.3716 | 913.0 | 841.8 | |
| 0.00 | 2.93 | 0.00 | 1.56 | 19.49 | 6.35 | -15.21 | 41.68 | 0.3735 | 924.0 | 803.2 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 19.46 | 5.93 | -15.63 | 42.50 | 0.3777 | 855.0 | 768.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 18.74 | 5.51 | -16.05 | 44.61 | 0.3744 | 811.0 | 685.3 | |
| 0.00 | 2.24 | 0.00 | 1.21 | 19.84 | 4.94 | -16.62 | 43.45 | 0.3929 | 921.0 | 581.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 18.18 | 5.07 | -16.48 | 46.48 | 0.3734 | 630.0 | 447.1 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 24.19 | 4.34 | -17.22 | 37.17 | 0.4488 | 706.0 | 538.9 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 16.80 | 2.79 | -18.77 | 52.85 | 0.3880 | 865.0 | 741.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
