SDO HMI 2014-11-09 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.41 | 0.00 | 5.19 | -10.13 | 338.65 | -42.91 | 108.19 | 0.7067 | 3.2 | -68.6 | |
|
previous
or next observation for the same group /

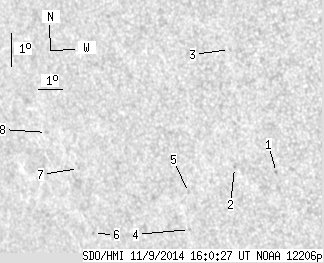

back to the solar disc SDO HMI 2014-11-09 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.78 | -9.87 | 343.46 | -38.10 | 109.75 | 0.6482 | -527.0 | -456.6 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -9.78 | 341.84 | -39.72 | 108.90 | 0.6680 | 639.0 | 534.5 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -6.20 | 342.07 | -39.49 | 103.73 | 0.6531 | 580.0 | 489.3 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -11.76 | 339.71 | -41.85 | 110.77 | 0.7010 | 632.0 | 505.2 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -10.62 | 339.87 | -41.69 | 109.28 | 0.6948 | 587.0 | 495.9 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -12.06 | 335.58 | -45.97 | 109.56 | 0.7486 | -617.0 | -521.8 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -10.08 | 335.34 | -46.22 | 106.91 | 0.7453 | -637.0 | -533.1 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -9.04 | 334.11 | -47.45 | 105.19 | 0.7561 | -631.0 | -488.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
