SDO HMI 2014-11-09 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.09 | 0.00 | 3.36 | 19.42 | 341.80 | -39.20 | 64.22 | 0.6643 | -102.2 | -110.8 | |
|
previous
or next observation for the same group /

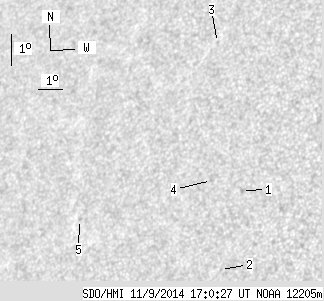

back to the solar disc SDO HMI 2014-11-09 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.88 | 19.18 | 343.98 | -37.03 | 63.63 | 0.6372 | -713.0 | -581.4 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 16.74 | 343.75 | -37.25 | 67.42 | 0.6302 | -619.0 | -450.4 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 23.74 | 341.59 | -39.42 | 58.31 | 0.6855 | 489.0 | 390.0 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 19.44 | 342.71 | -38.30 | 63.82 | 0.6535 | -201.0 | -240.5 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 18.04 | 337.63 | -43.38 | 67.75 | 0.7079 | 533.0 | 380.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
