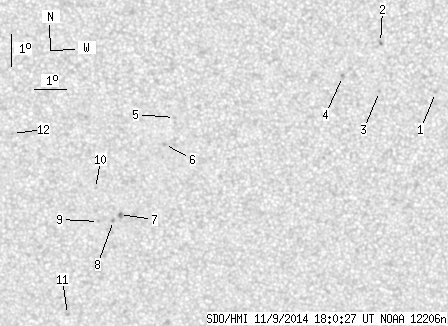

SDO HMI 2014-11-09 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 14.90 | 0.18 | 7.90 | -16.82 | 17.44 | -3.02 | 172.99 | 0.3577 | -152.8 | -128.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.65 | 25.01 | 4.55 | 193.87 | 0.3219 | 792.0 | 527.6 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -13.09 | 23.30 | 2.85 | 189.63 | 0.2905 | 1083.0 | 926.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.61 | 23.28 | 2.83 | 188.75 | 0.3156 | 871.0 | 760.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -14.14 | 22.15 | 1.69 | 185.41 | 0.3054 | 868.0 | 803.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -15.42 | 16.98 | -3.47 | 169.78 | 0.3306 | -914.0 | -744.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -16.27 | 16.65 | -3.80 | 169.34 | 0.3453 | -872.0 | -710.9 | |
| 0.34 | 2.84 | 0.18 | 1.53 | -18.50 | 15.19 | -5.26 | 166.92 | 0.3858 | -1031.2 | -871.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.70 | 15.00 | -5.46 | 166.57 | 0.3895 | -909.0 | -782.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.73 | 14.52 | -5.93 | 165.48 | 0.3919 | -811.0 | -667.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -17.68 | 14.47 | -5.99 | 164.60 | 0.3757 | -731.0 | -593.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -21.75 | 13.40 | -7.05 | 165.02 | 0.4428 | 764.0 | 649.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -15.95 | 11.94 | -8.51 | 156.80 | 0.3629 | -785.0 | -613.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
