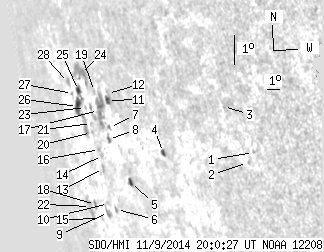

SDO HMI 2014-11-09 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.21 | 123.31 | 30.86 | 239.02 | -11.29 | 305.18 | -74.16 | 102.65 | 0.9674 | -211.7 | -271.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.83 | -11.31 | 318.18 | -61.17 | 104.64 | 0.8898 | 451.0 | 354.3 | |
| 0.00 | 0.69 | 0.00 | 0.76 | -11.64 | 317.67 | -61.68 | 104.91 | 0.8941 | 354.0 | 329.9 | |
| 0.00 | 1.03 | 0.00 | 1.16 | -9.99 | 316.71 | -62.63 | 102.91 | 0.8992 | -317.0 | -223.8 | |
| 1.38 | 2.41 | 1.91 | 3.34 | -11.67 | 311.63 | -67.72 | 103.91 | 0.9351 | 319.6 | 257.3 | |
| 2.07 | 3.71 | 3.42 | 6.12 | -12.80 | 308.06 | -71.29 | 104.57 | 0.9556 | 102.2 | 34.8 | |
| 0.00 | 1.90 | 0.00 | 3.60 | -13.76 | 305.90 | -73.45 | 105.27 | 0.9663 | -429.0 | -364.0 | |
| 0.00 | 1.55 | 0.00 | 2.69 | -11.17 | 307.06 | -72.28 | 102.75 | 0.9594 | 22.0 | -5.3 | |
| 0.95 | 3.36 | 1.67 | 5.93 | -11.56 | 306.71 | -72.64 | 103.11 | 0.9614 | 24.3 | -32.0 | |
| 0.00 | 4.48 | 0.00 | 9.08 | -13.91 | 304.86 | -74.48 | 105.29 | 0.9707 | -502.0 | -348.2 | |
| 0.00 | 2.50 | 0.00 | 4.97 | -13.62 | 305.13 | -74.22 | 105.03 | 0.9695 | -262.0 | -234.0 | |
| 2.33 | 3.79 | 3.92 | 6.39 | -10.33 | 307.37 | -71.98 | 101.92 | 0.9574 | 198.9 | 56.8 | |
| 0.00 | 1.21 | 0.00 | 2.03 | -10.11 | 307.49 | -71.85 | 101.71 | 0.9567 | 251.0 | 175.6 | |
| 0.00 | 2.58 | 0.00 | 4.98 | -12.52 | 305.47 | -73.87 | 103.94 | 0.9674 | -492.0 | -496.7 | |
| 0.00 | 1.81 | 0.00 | 3.44 | -12.11 | 305.68 | -73.67 | 103.55 | 0.9663 | -500.0 | -460.7 | |
| 0.00 | 0.69 | 0.00 | 1.50 | -14.16 | 303.78 | -75.57 | 105.41 | 0.9751 | -343.0 | -271.8 | |
| 0.00 | 1.12 | 0.00 | 2.15 | -11.94 | 305.48 | -73.87 | 103.35 | 0.9671 | -451.0 | -422.0 | |
| 0.00 | 26.28 | 0.00 | 47.58 | -10.70 | 306.22 | -73.12 | 102.16 | 0.9631 | -717.0 | -534.2 | |
| 0.78 | 2.58 | 1.74 | 5.79 | -13.75 | 303.43 | -75.92 | 104.95 | 0.9762 | -261.3 | -216.1 | |
| 0.00 | 2.07 | 0.00 | 3.76 | -10.13 | 306.16 | -73.19 | 101.56 | 0.9631 | -361.0 | -361.0 | |
| 0.00 | 1.64 | 0.00 | 3.22 | -11.45 | 304.94 | -74.41 | 102.78 | 0.9692 | -610.0 | -558.4 | |
| 0.00 | 0.78 | 0.00 | 1.51 | -11.16 | 305.15 | -74.20 | 102.51 | 0.9681 | -640.0 | -605.0 | |
| 0.00 | 9.31 | 0.00 | 22.16 | -13.86 | 302.66 | -76.69 | 104.97 | 0.9789 | 160.0 | 215.2 | |
| 0.00 | 1.03 | 0.00 | 2.05 | -10.70 | 304.79 | -74.56 | 101.99 | 0.9694 | -546.0 | -502.2 | |
| 0.00 | 15.94 | 0.00 | 31.25 | -9.66 | 304.91 | -74.44 | 100.93 | 0.9684 | -236.0 | -212.2 | |
| 2.50 | 26.11 | 5.10 | 54.03 | -10.21 | 304.31 | -75.04 | 101.43 | 0.9712 | -384.7 | -376.2 | |
| 6.20 | -25.00 | 13.10 | -25.00 | -10.72 | 303.81 | -75.53 | 101.91 | 0.9734 | -389.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 2.44 | -10.35 | 303.47 | -75.88 | 101.49 | 0.9745 | -68.0 | -38.4 | |
| 0.00 | 2.84 | 0.00 | 6.26 | -10.03 | 303.20 | -76.15 | 101.13 | 0.9754 | -3.0 | 38.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
