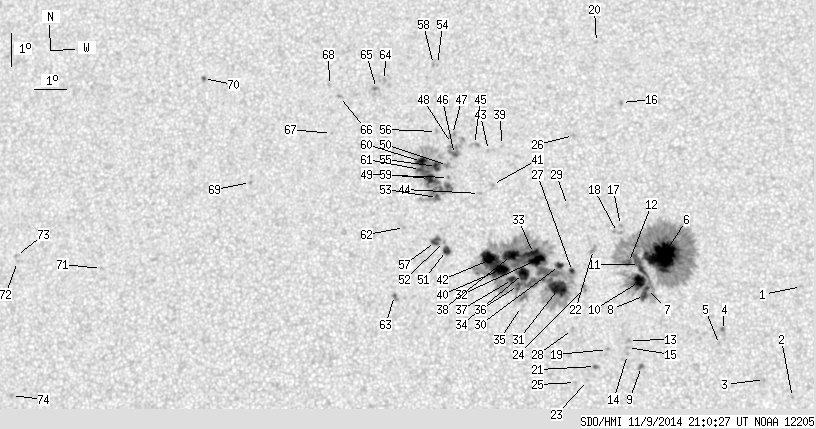

SDO HMI 2014-11-09 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 222.82 | 985.94 | 113.31 | 501.80 | 14.82 | 12.61 | -6.18 | 21.33 | 0.2272 | -453.5 | -243.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.56 | 13.75 | 20.06 | 1.26 | 353.16 | 0.1806 | -704.0 | -512.8 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.42 | 19.77 | 0.97 | 352.15 | 0.1227 | -817.0 | -614.0 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 10.96 | 18.92 | 0.13 | 359.04 | 0.1309 | -850.0 | -661.4 | |
| 0.00 | 2.76 | 0.00 | 1.38 | 12.43 | 17.65 | -1.15 | 7.15 | 0.1576 | -1021.0 | -813.7 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 12.01 | 17.56 | -1.24 | 8.09 | 0.1506 | -612.0 | -480.6 | |
| 52.56 | 393.19 | 26.58 | 198.82 | 14.66 | 15.80 | -3.00 | 14.60 | 0.2015 | -1440.3 | -444.1 | |
| 1.98 | -6.00 | 1.00 | -6.00 | 13.69 | 15.32 | -3.47 | 18.35 | 0.1879 | -1140.4 | 999999 | |
| 3.96 | -6.00 | 2.00 | -6.00 | 13.48 | 15.26 | -3.53 | 19.01 | 0.1848 | -1155.1 | 999999 | |
| 0.60 | 3.10 | 0.30 | 1.55 | 11.35 | 15.20 | -3.60 | 24.16 | 0.1510 | -1216.7 | -887.0 | |
| 11.89 | -6.00 | 6.00 | -6.00 | 13.90 | 15.10 | -3.69 | 19.03 | 0.1925 | -1343.6 | 999999 | |
| 9.82 | -6.00 | 4.97 | -6.00 | 14.42 | 15.10 | -3.70 | 18.21 | 0.2009 | -1107.1 | 999999 | |
| 2.24 | -6.00 | 1.13 | -6.00 | 14.47 | 14.76 | -4.04 | 19.64 | 0.2037 | -1011.5 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.17 | 12.13 | 14.79 | -4.00 | 24.37 | 0.1661 | -994.0 | -769.6 | |
| 0.00 | 0.60 | 0.00 | 0.30 | 11.71 | 14.77 | -4.03 | 25.62 | 0.1597 | -893.0 | -694.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.92 | 14.77 | -4.03 | 25.07 | 0.1630 | -966.0 | -779.3 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 19.36 | 14.44 | -4.36 | 14.67 | 0.2844 | -996.0 | -867.4 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 15.59 | 14.49 | -4.30 | 18.98 | 0.2233 | -802.0 | -617.5 | |
| 0.00 | 3.62 | 0.00 | 1.84 | 15.38 | 14.40 | -4.39 | 19.67 | 0.2203 | -695.0 | -585.0 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 11.85 | 14.16 | -4.64 | 28.46 | 0.1668 | -904.0 | -856.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 21.22 | 13.59 | -5.21 | 15.51 | 0.3179 | -687.0 | -565.8 | |
| 0.43 | 2.07 | 0.22 | 1.04 | 11.34 | 13.80 | -4.99 | 31.89 | 0.1623 | -1120.0 | -940.0 | |
| 0.00 | 3.79 | 0.00 | 1.92 | 14.86 | 13.67 | -5.12 | 23.57 | 0.2167 | -987.0 | -779.0 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 10.92 | 13.57 | -5.23 | 34.56 | 0.1585 | -870.0 | -713.1 | |
| 0.00 | 2.84 | 0.00 | 1.44 | 13.68 | 13.42 | -5.37 | 27.13 | 0.2004 | 817.0 | 600.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.86 | 13.20 | -5.59 | 36.60 | 0.1613 | -966.0 | -684.8 | |
| 0.00 | 2.67 | 0.00 | 1.38 | 18.34 | 12.95 | -5.84 | 20.61 | 0.2756 | -761.0 | -468.2 | |
| 2.07 | 384.15 | 1.05 | 195.21 | 14.20 | 13.04 | -5.75 | 27.54 | 0.2111 | 403.2 | -237.5 | |
| 0.00 | 2.33 | 0.00 | 1.17 | 12.45 | 13.08 | -5.71 | 31.88 | 0.1849 | 787.0 | 635.4 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 16.20 | 12.83 | -5.96 | 24.33 | 0.2432 | -571.0 | -495.6 | |
| 3.19 | -27.00 | 1.62 | -27.00 | 14.38 | 12.64 | -6.16 | 28.74 | 0.2171 | 581.4 | 999999 | |
| 18.70 | -27.00 | 9.47 | -27.00 | 13.68 | 12.62 | -6.17 | 30.46 | 0.2069 | -1259.2 | 999999 | |
| 10.77 | -27.00 | 5.47 | -27.00 | 14.55 | 11.95 | -6.84 | 30.91 | 0.2255 | -1156.7 | 999999 | |
| 5.69 | -27.00 | 2.89 | -27.00 | 14.73 | 11.82 | -6.97 | 30.95 | 0.2293 | 642.0 | 999999 | |
| 10.43 | -27.00 | 5.30 | -27.00 | 14.13 | 11.53 | -7.26 | 33.47 | 0.2232 | -1292.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 13.13 | 11.50 | -7.29 | 36.30 | 0.2097 | -51.0 | -36.4 | |
| 3.02 | -27.00 | 1.53 | -27.00 | 13.76 | 11.39 | -7.40 | 34.94 | 0.2195 | -1079.5 | 999999 | |
| 4.05 | -27.00 | 2.06 | -27.00 | 13.94 | 11.20 | -7.59 | 35.14 | 0.2239 | -1181.8 | 999999 | |
| 12.41 | -27.00 | 6.32 | -27.00 | 14.67 | 11.14 | -7.65 | 33.48 | 0.2345 | 1124.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 18.02 | 10.73 | -8.06 | 27.92 | 0.2861 | 808.0 | 672.4 | |
| 18.44 | -27.00 | 9.39 | -27.00 | 14.24 | 10.82 | -7.97 | 35.65 | 0.2317 | -1075.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 16.82 | 10.47 | -8.32 | 30.90 | 0.2710 | -870.0 | -724.2 | |
| 20.51 | -27.00 | 10.46 | -27.00 | 14.54 | 10.50 | -8.29 | 35.94 | 0.2390 | 820.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 17.86 | 10.30 | -8.50 | 29.44 | 0.2873 | 752.0 | 623.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 16.54 | 10.08 | -8.72 | 32.64 | 0.2706 | -795.0 | -718.9 | |
| 0.00 | 4.05 | 0.00 | 2.10 | 18.04 | 9.85 | -8.95 | 30.38 | 0.2937 | 633.0 | 734.2 | |
| 0.86 | 16.29 | 0.45 | 8.44 | 17.73 | 9.23 | -9.56 | 32.64 | 0.2947 | 1212.7 | 803.2 | |
| 0.00 | 3.27 | 0.00 | 1.70 | 18.34 | 9.13 | -9.66 | 31.74 | 0.3041 | 696.0 | 657.7 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 18.07 | 9.12 | -9.68 | 32.30 | 0.3004 | 589.0 | 602.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 17.02 | 9.08 | -9.71 | 34.46 | 0.2865 | 919.0 | 851.3 | |
| 0.00 | 3.71 | 0.00 | 1.92 | 17.39 | 9.03 | -9.77 | 33.85 | 0.2919 | 1105.0 | 896.0 | |
| 3.96 | 5.51 | 2.03 | 2.83 | 14.81 | 9.12 | -9.67 | 39.46 | 0.2567 | 1033.2 | 704.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 15.08 | 9.05 | -9.75 | 38.98 | 0.2610 | 827.0 | 654.2 | |
| 1.81 | 92.29 | 0.93 | 47.80 | 16.41 | 8.76 | -10.03 | 36.62 | 0.2813 | -954.0 | -25.9 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 20.50 | 8.52 | -10.27 | 29.62 | 0.3394 | 873.0 | 716.9 | |
| 5.08 | -53.00 | 2.63 | -53.00 | 17.36 | 8.68 | -10.11 | 34.83 | 0.2947 | 894.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 18.43 | 8.62 | -10.17 | 32.90 | 0.3098 | 934.0 | 676.5 | |
| 3.79 | 6.89 | 1.95 | 3.54 | 15.07 | 8.77 | -10.03 | 39.77 | 0.2640 | 1019.9 | 778.6 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 20.50 | 8.40 | -10.40 | 29.93 | 0.3404 | 785.0 | 598.9 | |
| 5.69 | -53.00 | 2.94 | -53.00 | 16.99 | 8.48 | -10.31 | 36.12 | 0.2918 | 1062.1 | 999999 | |
| 6.20 | -53.00 | 3.22 | -53.00 | 17.51 | 8.20 | -10.59 | 35.76 | 0.3014 | -1123.5 | 999999 | |
| 1.64 | -53.00 | 0.85 | -53.00 | 17.26 | 8.18 | -10.61 | 36.31 | 0.2983 | -1186.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 15.49 | 7.78 | -11.02 | 41.35 | 0.2800 | -783.0 | -592.5 | |
| 0.43 | 2.33 | 0.22 | 1.19 | 13.43 | 7.57 | -11.23 | 47.42 | 0.2584 | 1069.6 | 948.9 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 19.99 | 6.85 | -11.94 | 34.26 | 0.3469 | 943.0 | 754.9 | |
| 0.00 | 2.67 | 0.00 | 1.41 | 19.74 | 6.61 | -12.18 | 35.22 | 0.3459 | 1052.0 | 868.7 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 19.47 | 5.44 | -13.36 | 38.16 | 0.3541 | 834.0 | 670.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 18.33 | 5.27 | -13.52 | 40.70 | 0.3419 | 770.0 | 546.3 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 19.81 | 5.09 | -13.71 | 38.24 | 0.3618 | 906.0 | 622.3 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 16.80 | 2.79 | -16.00 | 48.60 | 0.3534 | 892.0 | 691.1 | |
| 0.60 | 2.41 | 0.33 | 1.31 | 19.97 | 0.93 | -17.86 | 45.16 | 0.4083 | -821.6 | -686.9 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 14.11 | 358.20 | -20.60 | 61.11 | 0.3914 | 799.0 | 581.7 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 14.26 | 355.40 | -23.39 | 63.48 | 0.4318 | 657.0 | 531.3 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 14.44 | 355.35 | -23.44 | 63.15 | 0.4337 | 697.0 | 530.3 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 10.23 | 355.58 | -23.22 | 72.47 | 0.4086 | -784.0 | -636.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
