SDO HMI 2014-11-09 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.75 | 0.00 | 7.20 | -23.56 | 9.08 | -9.71 | 161.20 | 0.4812 | 544.1 | 508.6 | |
|
previous
or next observation for the same group /

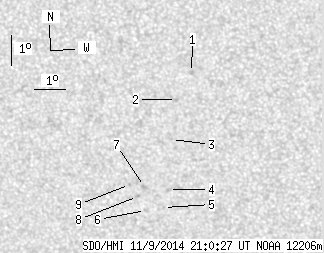

back to the solar disc SDO HMI 2014-11-09 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.94 | -20.50 | 10.36 | -8.43 | 161.30 | 0.4301 | 688.0 | 529.7 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -21.39 | 9.83 | -8.97 | 160.93 | 0.4460 | 725.0 | 640.2 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -22.71 | 9.58 | -9.21 | 161.46 | 0.4665 | 669.0 | 461.1 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -24.37 | 9.36 | -9.44 | 162.25 | 0.4917 | 216.0 | 473.2 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -24.98 | 9.14 | -9.65 | 162.29 | 0.5014 | 705.0 | 561.8 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -25.09 | 8.54 | -10.26 | 161.33 | 0.5058 | 427.0 | 428.0 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -24.28 | 8.57 | -10.22 | 160.81 | 0.4942 | 453.0 | 643.2 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -24.62 | 8.31 | -10.48 | 160.61 | 0.5003 | 503.0 | 389.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -24.22 | 8.08 | -10.71 | 159.92 | 0.4958 | 511.0 | 460.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
