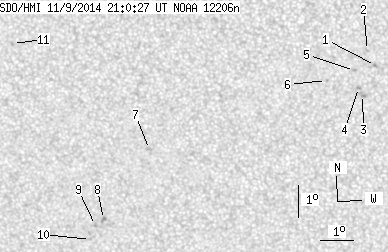

SDO HMI 2014-11-09 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.83 | 0.00 | 9.37 | -15.47 | 19.54 | 0.75 | 183.05 | 0.3336 | 80.5 | 29.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.64 | 23.66 | 4.87 | 195.67 | 0.3067 | 938.0 | 834.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.17 | 23.41 | 4.61 | 195.31 | 0.2981 | 974.0 | 749.5 | |
| 0.00 | 3.19 | 0.00 | 1.67 | -14.54 | 23.28 | 4.49 | 193.77 | 0.3196 | 771.0 | 657.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -14.32 | 23.15 | 4.36 | 193.56 | 0.3156 | 906.0 | 683.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.79 | 23.02 | 4.23 | 193.57 | 0.3065 | 907.0 | 667.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.10 | 22.17 | 3.37 | 190.71 | 0.3085 | 772.0 | 674.5 | |
| 0.00 | 2.15 | 0.00 | 1.13 | -16.25 | 16.73 | -2.07 | 174.14 | 0.3407 | -896.0 | -771.0 | |
| 0.00 | 2.33 | 0.00 | 1.24 | -18.47 | 15.26 | -3.54 | 171.10 | 0.3798 | -1045.0 | -926.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.67 | 15.00 | -3.79 | 170.56 | 0.3836 | -1000.0 | -835.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -19.12 | 14.83 | -3.96 | 170.35 | 0.3912 | -650.0 | -545.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -12.95 | 12.58 | -6.22 | 159.51 | 0.3028 | -792.0 | -640.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
