SDO HMI 2014-11-09 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.41 | 0.00 | 4.02 | -16.41 | 32.62 | 14.38 | 215.21 | 0.4158 | -707.5 | -625.6 | |
|
previous
or next observation for the same group /

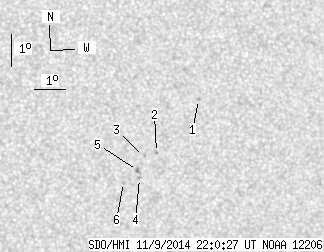

back to the solar disc SDO HMI 2014-11-09 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.65 | -14.59 | 34.06 | 15.82 | 220.62 | 0.4071 | -865.0 | -741.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -16.23 | 32.84 | 14.60 | 215.84 | 0.4152 | -419.0 | -369.3 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -16.35 | 32.44 | 14.20 | 214.91 | 0.4130 | -514.0 | -343.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -17.04 | 32.36 | 14.12 | 213.79 | 0.4212 | -711.0 | -525.9 | |
| 0.00 | 2.15 | 0.00 | 1.17 | -16.78 | 32.28 | 14.04 | 213.99 | 0.4172 | -977.0 | -820.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -17.16 | 31.86 | 13.62 | 212.68 | 0.4184 | -759.0 | -636.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
