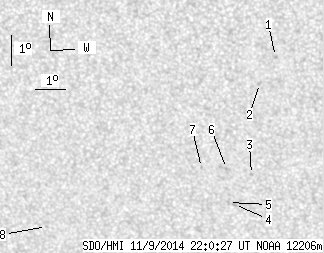

SDO HMI 2014-11-09 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.40 | 0.00 | 5.32 | -23.80 | 8.54 | -9.70 | 161.52 | 0.4847 | 458.6 | 425.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-09 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.85 | -20.53 | 10.36 | -7.88 | 162.45 | 0.4278 | 686.0 | 549.4 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -21.42 | 9.79 | -8.45 | 161.97 | 0.4437 | 674.0 | 643.4 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -24.44 | 9.33 | -8.91 | 163.21 | 0.4902 | 531.0 | 508.8 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -25.46 | 8.69 | -9.55 | 162.77 | 0.5077 | 353.0 | 413.6 | |
| 0.00 | 1.55 | 0.00 | 0.89 | -25.39 | 8.50 | -9.75 | 162.39 | 0.5076 | 612.0 | 471.8 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -24.24 | 8.52 | -9.72 | 161.66 | 0.4911 | 626.0 | 527.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -24.22 | 7.70 | -10.54 | 160.21 | 0.4949 | 558.0 | 385.0 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -26.29 | 2.23 | -16.01 | 153.42 | 0.5549 | -371.0 | -415.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
