SDO HMI 2014-11-09 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 232.11 | 960.68 | 117.78 | 488.13 | 14.83 | 12.71 | -4.98 | 16.33 | 0.2192 | -471.8 | -225.4 | |
|
previous
or next observation for the same group /

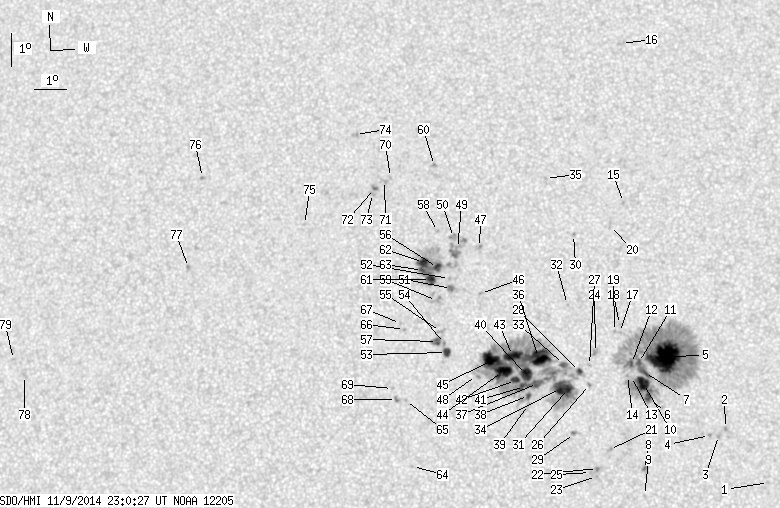

back to the solar disc SDO HMI 2014-11-09 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.89 | 18.97 | 1.28 | 350.38 | 0.1318 | -899.0 | -753.9 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 12.51 | 17.67 | -0.02 | 0.12 | 0.1580 | -966.0 | -870.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 12.30 | 17.46 | -0.23 | 1.47 | 0.1544 | -886.0 | -784.9 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 12.30 | 17.18 | -0.51 | 3.21 | 0.1546 | -883.0 | -737.0 | |
| 54.47 | 389.37 | 27.52 | 196.72 | 14.65 | 15.83 | -1.86 | 9.18 | 0.1975 | -1428.6 | -434.6 | |
| 3.79 | -5.00 | 1.91 | -5.00 | 13.45 | 15.32 | -2.37 | 13.05 | 0.1788 | -1101.8 | 999999 | |
| 3.19 | -5.00 | 1.61 | -5.00 | 14.20 | 15.19 | -2.50 | 12.77 | 0.1920 | -1256.6 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.68 | 11.28 | 15.22 | -2.47 | 17.26 | 0.1432 | -1249.0 | -918.7 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 10.50 | 15.22 | -2.47 | 19.04 | 0.1304 | -787.0 | -493.6 | |
| 11.12 | -5.00 | 5.60 | -5.00 | 13.87 | 15.16 | -2.52 | 13.32 | 0.1865 | -1369.6 | 999999 | |
| 2.33 | -5.00 | 1.18 | -5.00 | 14.50 | 15.00 | -2.68 | 13.32 | 0.1978 | -1094.3 | 999999 | |
| 1.64 | -5.00 | 0.83 | -5.00 | 14.47 | 14.79 | -2.90 | 14.38 | 0.1981 | -1042.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 14.08 | 14.79 | -2.89 | 14.88 | 0.1916 | -353.0 | -374.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 14.11 | 14.67 | -3.02 | 15.44 | 0.1926 | -825.0 | -643.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 19.39 | 14.47 | -3.22 | 10.93 | 0.2808 | -978.0 | -791.7 | |
| 0.00 | 3.02 | 0.00 | 1.60 | 24.36 | 14.29 | -3.40 | 8.60 | 0.3625 | -630.0 | -521.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 15.41 | 14.41 | -3.28 | 14.92 | 0.2153 | -736.0 | -599.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 15.65 | 14.40 | -3.28 | 14.64 | 0.2193 | -727.0 | -657.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 15.44 | 14.25 | -3.44 | 15.55 | 0.2165 | -696.0 | -554.6 | |
| 0.00 | 2.59 | 0.00 | 1.33 | 18.68 | 14.07 | -3.62 | 12.82 | 0.2705 | -654.0 | -604.6 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 11.88 | 14.15 | -3.54 | 22.41 | 0.1592 | -970.0 | -844.9 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 11.31 | 13.79 | -3.90 | 26.00 | 0.1528 | -1197.0 | -968.8 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 11.07 | 13.76 | -3.92 | 26.88 | 0.1493 | -937.0 | -740.0 | |
| 0.00 | 3.53 | 0.00 | 1.79 | 14.80 | 13.68 | -4.01 | 18.96 | 0.2090 | -1019.0 | -817.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 11.19 | 13.58 | -4.11 | 27.57 | 0.1525 | -876.0 | -690.8 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 13.83 | 13.51 | -4.18 | 21.43 | 0.1945 | 670.0 | 399.6 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 14.41 | 13.50 | -4.19 | 20.42 | 0.2037 | -759.0 | -501.6 | |
| 1.64 | 361.45 | 0.83 | 183.30 | 14.23 | 13.20 | -4.49 | 22.10 | 0.2027 | 343.1 | -185.3 | |
| 0.00 | 2.33 | 0.00 | 1.17 | 12.36 | 13.08 | -4.61 | 26.90 | 0.1744 | 1088.0 | 808.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 18.40 | 12.92 | -4.77 | 17.02 | 0.2709 | -964.0 | -732.1 | |
| 8.36 | -28.00 | 4.22 | -28.00 | 13.71 | 12.87 | -4.82 | 24.62 | 0.1968 | -1198.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.26 | 12.78 | -4.91 | 20.32 | 0.2374 | -636.0 | -476.0 | |
| 1.98 | -28.00 | 1.00 | -28.00 | 14.44 | 12.70 | -4.99 | 23.84 | 0.2093 | 586.2 | 999999 | |
| 11.12 | -28.00 | 5.62 | -28.00 | 13.71 | 12.62 | -5.06 | 25.71 | 0.1986 | -1219.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.12 | 11.98 | -5.71 | 18.03 | 0.3031 | -653.0 | -529.6 | |
| 26.63 | -28.00 | 13.51 | -28.00 | 14.64 | 11.93 | -5.76 | 26.57 | 0.2181 | -301.5 | 999999 | |
| 5.00 | -28.00 | 2.53 | -28.00 | 13.86 | 11.91 | -5.77 | 28.39 | 0.2064 | -1225.8 | 999999 | |
| 1.64 | 9.91 | 0.83 | 5.01 | 13.49 | 11.65 | -6.04 | 30.39 | 0.2033 | -1036.5 | -440.4 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 13.22 | 11.65 | -6.03 | 31.07 | 0.1992 | -75.0 | -78.2 | |
| 10.95 | -28.00 | 5.55 | -28.00 | 14.13 | 11.57 | -6.12 | 29.14 | 0.2132 | -1276.2 | 999999 | |
| 6.21 | -28.00 | 3.14 | -28.00 | 13.77 | 11.52 | -6.17 | 30.23 | 0.2083 | -1083.5 | 999999 | |
| 4.40 | -28.00 | 2.23 | -28.00 | 13.94 | 11.24 | -6.45 | 30.89 | 0.2134 | -1169.0 | 999999 | |
| 12.41 | -28.00 | 6.31 | -28.00 | 14.70 | 11.12 | -6.57 | 29.53 | 0.2254 | 1134.9 | 999999 | |
| 17.15 | -28.00 | 8.71 | -28.00 | 14.21 | 10.83 | -6.86 | 31.77 | 0.2209 | -1126.6 | 999999 | |
| 21.29 | -28.00 | 10.83 | -28.00 | 14.54 | 10.48 | -7.21 | 32.23 | 0.2288 | 797.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 16.58 | 10.07 | -7.62 | 29.21 | 0.2617 | -758.0 | -641.8 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 17.98 | 9.98 | -7.71 | 26.93 | 0.2831 | 940.0 | 820.5 | |
| 0.00 | 3.02 | 0.00 | 1.53 | 14.09 | 10.03 | -7.66 | 34.95 | 0.2267 | -688.0 | -600.8 | |
| 0.00 | 16.81 | 0.00 | 8.69 | 17.95 | 9.28 | -8.40 | 29.01 | 0.2880 | 812.0 | 817.6 | |
| 0.00 | 4.31 | 0.00 | 2.23 | 18.28 | 9.14 | -8.55 | 28.82 | 0.2940 | 773.0 | 678.2 | |
| 0.00 | 5.08 | 0.00 | 2.62 | 16.72 | 9.15 | -8.54 | 31.72 | 0.2716 | 1101.0 | 872.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 17.03 | 9.08 | -8.61 | 31.33 | 0.2766 | 989.0 | 807.7 | |
| 4.05 | 5.60 | 2.07 | 2.86 | 14.78 | 9.08 | -8.61 | 36.34 | 0.2455 | 1071.1 | 722.5 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 15.05 | 9.00 | -8.68 | 35.89 | 0.2499 | 811.0 | 630.5 | |
| 0.00 | 3.36 | 0.00 | 1.72 | 15.41 | 8.86 | -8.82 | 35.45 | 0.2562 | 694.0 | 539.8 | |
| 4.05 | 71.45 | 2.09 | 36.94 | 17.36 | 8.68 | -9.01 | 31.81 | 0.2848 | 872.7 | 23.8 | |
| 2.93 | 6.12 | 1.50 | 3.13 | 15.11 | 8.78 | -8.91 | 36.42 | 0.2529 | 1076.2 | 818.8 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 18.46 | 8.63 | -9.06 | 29.92 | 0.3008 | 840.0 | 615.5 | |
| 0.00 | 4.74 | 0.00 | 2.44 | 16.35 | 8.70 | -8.99 | 33.82 | 0.2706 | -757.0 | -565.6 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 20.50 | 8.42 | -9.27 | 27.19 | 0.3317 | 941.0 | 739.8 | |
| 5.77 | -56.00 | 2.98 | -56.00 | 16.99 | 8.48 | -9.21 | 33.11 | 0.2814 | 1076.0 | 999999 | |
| 6.98 | -56.00 | 3.61 | -56.00 | 17.51 | 8.23 | -9.45 | 32.76 | 0.2908 | -1114.2 | 999999 | |
| 2.41 | -56.00 | 1.25 | -56.00 | 17.26 | 8.21 | -9.47 | 33.29 | 0.2876 | -1081.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 11.34 | 8.15 | -9.54 | 49.69 | 0.2140 | -808.0 | -602.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 13.32 | 7.86 | -9.83 | 43.99 | 0.2402 | 740.0 | 517.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.46 | 7.74 | -9.95 | 38.58 | 0.2683 | -853.0 | -600.8 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 15.64 | 7.60 | -10.08 | 38.51 | 0.2720 | -905.0 | -739.5 | |
| 0.00 | 2.33 | 0.00 | 1.19 | 13.35 | 7.58 | -10.11 | 44.70 | 0.2438 | 1076.0 | 870.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 13.68 | 7.45 | -10.24 | 44.11 | 0.2494 | 717.0 | 456.5 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 20.12 | 7.03 | -10.66 | 31.13 | 0.3375 | 740.0 | 607.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 20.02 | 6.84 | -10.85 | 31.72 | 0.3378 | 893.0 | 758.0 | |
| 0.60 | 2.84 | 0.32 | 1.50 | 19.77 | 6.54 | -11.15 | 32.85 | 0.3370 | 1101.0 | 838.6 | |
| 0.00 | 2.59 | 0.00 | 1.36 | 19.62 | 6.48 | -11.21 | 33.24 | 0.3354 | 786.0 | 692.5 | |
| 0.00 | 3.27 | 0.00 | 1.74 | 21.44 | 5.80 | -11.89 | 31.76 | 0.3661 | 744.0 | 614.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 18.64 | 4.37 | -13.32 | 39.66 | 0.3435 | 725.0 | 507.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 20.04 | 0.91 | -16.77 | 43.30 | 0.3971 | -835.0 | -671.8 | |
| 0.00 | 2.07 | 0.00 | 1.10 | 17.27 | 0.74 | -16.95 | 49.11 | 0.3699 | 800.0 | 663.0 | |
| 0.00 | 2.50 | 0.00 | 1.36 | 13.89 | 355.70 | -21.99 | 62.99 | 0.4097 | 803.0 | 632.0 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 14.37 | 355.29 | -22.40 | 62.33 | 0.4186 | 733.0 | 570.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
