SDO HMI 2014-11-09 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.02 | 0.00 | 5.82 | -16.28 | 18.68 | 0.99 | 183.70 | 0.3457 | -195.5 | -181.4 | |
|
previous
or next observation for the same group /

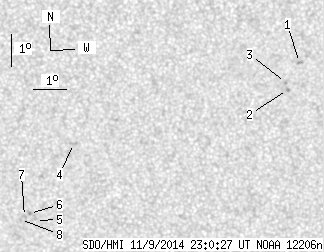

back to the solar disc SDO HMI 2014-11-09 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.03 | -13.68 | 23.63 | 5.95 | 198.87 | 0.3126 | 856.0 | 694.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -14.52 | 23.29 | 5.60 | 197.02 | 0.3241 | 959.0 | 821.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -14.30 | 23.22 | 5.53 | 197.03 | 0.3203 | 787.0 | 794.0 | |
| 0.00 | 2.67 | 0.00 | 1.41 | -16.19 | 16.71 | -0.98 | 177.20 | 0.3382 | -846.0 | -710.9 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -18.64 | 15.50 | -2.19 | 174.50 | 0.3796 | -516.0 | -623.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.42 | 15.31 | -2.37 | 173.98 | 0.3763 | -1001.0 | -850.2 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -18.51 | 15.16 | -2.53 | 173.61 | 0.3781 | -910.0 | -749.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -18.61 | 15.03 | -2.66 | 173.32 | 0.3799 | -893.0 | -824.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
