SDO HMI 2014-11-09 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.41 | 129.18 | 38.68 | 226.15 | -11.13 | 305.16 | -72.53 | 102.69 | 0.9598 | -257.1 | -275.5 | |
|
previous
or next observation for the same group /

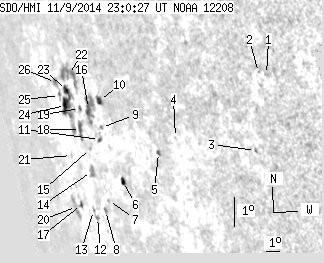

back to the solar disc SDO HMI 2014-11-09 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.58 | -8.87 | 319.68 | -58.01 | 102.48 | 0.8604 | 200.0 | 210.2 | |
| 0.00 | 0.86 | 0.00 | 0.84 | -8.83 | 319.22 | -58.46 | 102.35 | 0.8642 | 509.0 | 384.4 | |
| 0.00 | 1.38 | 0.00 | 1.40 | -11.25 | 318.32 | -59.37 | 104.93 | 0.8754 | 420.0 | 263.4 | |
| 0.00 | 0.26 | 0.00 | 0.31 | -11.13 | 313.17 | -64.52 | 103.84 | 0.9140 | 161.0 | 197.3 | |
| 0.69 | 1.72 | 0.89 | 2.22 | -11.67 | 311.68 | -66.01 | 104.18 | 0.9245 | 435.0 | 311.9 | |
| 2.41 | 3.53 | 3.64 | 5.32 | -12.76 | 308.26 | -69.43 | 104.79 | 0.9459 | 89.8 | 123.2 | |
| 0.00 | 1.21 | 0.00 | 2.01 | -13.45 | 306.42 | -71.27 | 105.25 | 0.9560 | -417.0 | -401.6 | |
| 0.00 | 2.24 | 0.00 | 3.85 | -13.79 | 305.87 | -71.82 | 105.52 | 0.9589 | -442.0 | -375.9 | |
| 0.00 | 1.55 | 0.00 | 2.43 | -11.16 | 307.23 | -70.46 | 102.98 | 0.9502 | 229.0 | 198.1 | |
| 2.50 | 4.31 | 3.85 | 6.64 | -10.32 | 307.50 | -70.19 | 102.14 | 0.9482 | 204.5 | 43.1 | |
| 0.86 | 2.41 | 1.39 | 3.87 | -11.55 | 306.81 | -70.87 | 103.33 | 0.9527 | 92.2 | 70.6 | |
| 0.00 | 1.98 | 0.00 | 3.63 | -14.07 | 304.83 | -72.86 | 105.66 | 0.9639 | -504.0 | -386.2 | |
| 0.00 | 1.38 | 0.00 | 2.55 | -13.87 | 304.57 | -73.11 | 105.42 | 0.9649 | -149.0 | -225.2 | |
| 0.00 | 6.21 | 0.00 | 10.88 | -12.62 | 305.33 | -72.36 | 104.24 | 0.9607 | -592.0 | -515.0 | |
| 0.00 | 0.86 | 0.00 | 1.47 | -11.89 | 305.73 | -71.96 | 103.54 | 0.9583 | -410.0 | -393.2 | |
| 4.14 | 19.13 | 6.80 | 31.15 | -10.64 | 306.31 | -71.38 | 102.31 | 0.9546 | -658.8 | -535.6 | |
| 0.95 | 2.41 | 1.90 | 4.83 | -13.75 | 303.34 | -74.35 | 105.14 | 0.9701 | -286.5 | -267.8 | |
| 0.00 | 7.76 | 0.00 | 13.71 | -11.35 | 305.08 | -72.61 | 102.89 | 0.9611 | -596.0 | -592.3 | |
| 0.60 | 1.98 | 1.04 | 3.41 | -10.69 | 305.39 | -72.30 | 102.25 | 0.9592 | -578.9 | -487.2 | |
| 0.00 | 8.19 | 0.00 | 17.29 | -13.86 | 302.65 | -75.04 | 105.16 | 0.9729 | 190.0 | 269.1 | |
| 0.00 | 0.26 | 0.00 | 0.51 | -12.24 | 303.46 | -74.23 | 103.61 | 0.9688 | -336.0 | -320.7 | |
| 0.00 | 19.56 | 0.00 | 34.64 | -9.69 | 304.85 | -72.84 | 101.15 | 0.9612 | -381.0 | -240.8 | |
| 3.02 | 31.37 | 5.53 | 57.99 | -10.20 | 304.33 | -73.35 | 101.62 | 0.9639 | -439.8 | -422.7 | |
| 7.24 | -23.00 | 13.64 | -23.00 | -10.69 | 303.92 | -73.77 | 102.07 | 0.9660 | -413.0 | 999999 | |
| 0.00 | 2.84 | 0.00 | 5.51 | -10.41 | 303.43 | -74.26 | 101.73 | 0.9680 | -105.0 | -62.0 | |
| 0.00 | 4.14 | 0.00 | 8.11 | -10.03 | 303.23 | -74.46 | 101.31 | 0.9687 | -29.0 | -2.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
