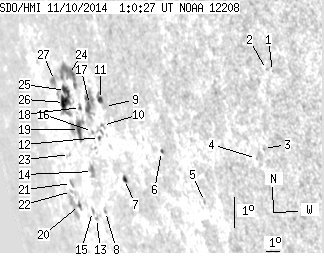

SDO HMI 2014-11-10 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.70 | 140.41 | 39.47 | 233.46 | -11.23 | 305.15 | -71.44 | 102.92 | 0.9547 | -302.6 | -255.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.40 | -8.83 | 319.59 | -57.00 | 102.62 | 0.8513 | 302.0 | 361.0 | |
| 0.00 | 0.43 | 0.00 | 0.41 | -8.78 | 319.27 | -57.32 | 102.50 | 0.8541 | 489.0 | 471.4 | |
| 0.00 | 0.52 | 0.00 | 0.51 | -11.23 | 318.40 | -58.19 | 105.14 | 0.8655 | 261.0 | 318.8 | |
| 0.00 | 0.86 | 0.00 | 0.86 | -11.56 | 317.88 | -58.71 | 105.41 | 0.8704 | 147.0 | 171.2 | |
| 0.00 | 1.12 | 0.00 | 1.28 | -13.09 | 314.02 | -62.56 | 106.32 | 0.9026 | 9.0 | 70.8 | |
| 0.00 | 1.72 | 0.00 | 2.12 | -11.68 | 311.67 | -64.91 | 104.36 | 0.9172 | 350.0 | 323.4 | |
| 1.81 | 3.28 | 2.58 | 4.67 | -12.73 | 308.27 | -68.31 | 104.93 | 0.9396 | 232.2 | 174.3 | |
| 0.00 | 1.64 | 0.00 | 2.66 | -13.86 | 305.87 | -70.72 | 105.74 | 0.9535 | -371.0 | -400.3 | |
| 0.00 | 1.12 | 0.00 | 1.61 | -10.53 | 307.77 | -68.82 | 102.53 | 0.9406 | 100.0 | 72.2 | |
| 0.00 | 1.72 | 0.00 | 2.55 | -11.14 | 307.29 | -69.30 | 103.10 | 0.9438 | 308.0 | 289.6 | |
| 2.24 | 5.52 | 3.27 | 8.05 | -10.33 | 307.53 | -69.06 | 102.29 | 0.9419 | 275.4 | 146.6 | |
| 0.60 | 1.12 | 0.92 | 1.70 | -11.53 | 306.81 | -69.78 | 103.45 | 0.9468 | 136.6 | 98.7 | |
| 0.00 | 1.03 | 0.00 | 1.79 | -14.14 | 304.79 | -71.80 | 105.88 | 0.9590 | -536.0 | -448.2 | |
| 0.00 | 6.21 | 0.00 | 10.19 | -12.65 | 305.48 | -71.11 | 104.43 | 0.9546 | -533.0 | -445.6 | |
| 0.00 | 1.81 | 0.00 | 3.14 | -13.93 | 304.54 | -72.04 | 105.63 | 0.9600 | -296.0 | -312.2 | |
| 0.00 | 1.29 | 0.00 | 2.02 | -11.38 | 306.26 | -70.32 | 103.22 | 0.9496 | -469.0 | -417.2 | |
| 0.00 | 19.22 | 0.00 | 29.54 | -10.54 | 306.45 | -70.13 | 102.37 | 0.9480 | -719.0 | -531.9 | |
| 0.60 | 2.24 | 0.97 | 3.62 | -10.69 | 305.54 | -71.04 | 102.40 | 0.9529 | -447.7 | -434.9 | |
| 6.12 | 17.67 | 10.20 | 29.66 | -11.39 | 305.03 | -71.55 | 103.06 | 0.9560 | -567.6 | -487.6 | |
| 0.95 | 13.45 | 1.78 | 26.06 | -13.82 | 303.28 | -73.31 | 105.35 | 0.9657 | -295.5 | 71.0 | |
| 0.00 | 2.50 | 0.00 | 4.75 | -13.16 | 302.95 | -73.64 | 104.63 | 0.9668 | -314.0 | -246.6 | |
| 0.00 | 1.03 | 0.00 | 2.00 | -13.42 | 302.73 | -73.85 | 104.87 | 0.9678 | -241.0 | -232.6 | |
| 0.00 | 0.78 | 0.00 | 1.42 | -12.25 | 303.44 | -73.15 | 103.74 | 0.9641 | -215.0 | -271.8 | |
| 0.00 | 20.60 | 0.00 | 34.18 | -9.72 | 304.92 | -71.66 | 101.31 | 0.9555 | -355.0 | -258.1 | |
| 4.48 | 26.81 | 7.67 | 46.81 | -10.24 | 304.34 | -72.25 | 101.78 | 0.9587 | -546.9 | -352.7 | |
| 6.90 | -25.00 | 12.08 | -25.00 | -10.62 | 304.01 | -72.58 | 102.14 | 0.9605 | -520.7 | 999999 | |
| 0.00 | 6.29 | 0.00 | 11.46 | -9.99 | 303.34 | -73.24 | 101.41 | 0.9632 | -1.0 | 18.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
