SDO HMI 2014-11-10 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.77 | 0.00 | 6.04 | -24.07 | 9.04 | -7.00 | 166.47 | 0.4766 | 681.6 | 559.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

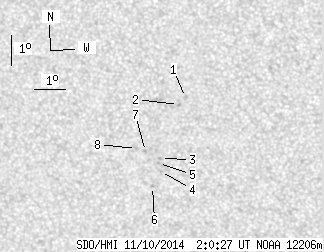

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.00 | -22.42 | 9.95 | -6.09 | 167.33 | 0.4487 | 748.0 | 512.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -22.65 | 9.71 | -6.32 | 166.98 | 0.4530 | 692.0 | 686.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -24.46 | 9.03 | -7.00 | 166.64 | 0.4825 | 551.0 | 522.6 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -24.90 | 9.01 | -7.03 | 166.83 | 0.4891 | 700.0 | 562.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -24.63 | 8.96 | -7.08 | 166.59 | 0.4853 | 701.0 | 551.1 | |
| 0.00 | 1.55 | 0.00 | 0.88 | -25.41 | 8.71 | -7.33 | 166.56 | 0.4977 | 633.0 | 450.3 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -24.23 | 8.55 | -7.48 | 165.64 | 0.4808 | 872.0 | 657.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -24.13 | 8.26 | -7.77 | 165.05 | 0.4805 | 556.0 | 555.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
