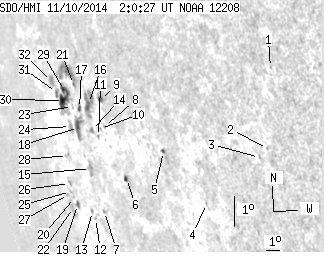

SDO HMI 2014-11-10 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.47 | 139.81 | 42.73 | 225.64 | -11.24 | 305.13 | -70.91 | 103.00 | 0.9520 | -340.3 | -271.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.72 | -8.76 | 319.33 | -56.71 | 102.59 | 0.8486 | 210.0 | 246.6 | |
| 0.00 | 0.86 | 0.00 | 0.83 | -11.27 | 318.46 | -57.58 | 105.31 | 0.8604 | 99.0 | 135.5 | |
| 0.00 | 1.03 | 0.00 | 1.02 | -11.57 | 317.90 | -58.14 | 105.53 | 0.8656 | 136.0 | 148.7 | |
| 0.00 | 0.60 | 0.00 | 0.68 | -13.19 | 314.01 | -62.02 | 106.53 | 0.8988 | 13.0 | 109.0 | |
| 0.78 | 1.81 | 0.93 | 2.18 | -11.72 | 311.74 | -64.30 | 104.50 | 0.9131 | 302.9 | 301.4 | |
| 1.47 | 2.41 | 2.03 | 3.35 | -12.73 | 308.45 | -67.59 | 105.04 | 0.9353 | 136.7 | 185.1 | |
| 0.00 | 1.29 | 0.00 | 2.05 | -13.89 | 305.83 | -70.20 | 105.86 | 0.9509 | -376.0 | -405.1 | |
| 0.00 | 1.12 | 0.00 | 1.60 | -11.19 | 307.46 | -68.57 | 103.26 | 0.9397 | 459.0 | 402.8 | |
| 1.64 | 4.57 | 2.32 | 6.48 | -10.36 | 307.54 | -68.50 | 102.40 | 0.9386 | 367.6 | 167.1 | |
| 0.00 | 1.03 | 0.00 | 1.51 | -11.27 | 307.08 | -68.95 | 103.29 | 0.9420 | 168.0 | 171.8 | |
| 0.00 | 1.12 | 0.00 | 1.66 | -11.53 | 306.77 | -69.27 | 103.52 | 0.9440 | 134.0 | 107.3 | |
| 0.00 | 0.69 | 0.00 | 1.16 | -14.17 | 304.78 | -71.25 | 105.99 | 0.9564 | -507.0 | -486.2 | |
| 0.00 | 1.38 | 0.00 | 2.32 | -13.96 | 304.65 | -71.39 | 105.75 | 0.9569 | -321.0 | -348.3 | |
| 0.60 | 2.24 | 0.91 | 3.40 | -11.38 | 306.24 | -69.80 | 103.29 | 0.9468 | -477.7 | -415.2 | |
| 0.00 | 6.72 | 0.00 | 10.73 | -12.59 | 305.42 | -70.62 | 104.44 | 0.9520 | -522.0 | -436.7 | |
| 0.00 | 19.74 | 0.00 | 29.53 | -10.55 | 306.42 | -69.62 | 102.44 | 0.9452 | -696.0 | -523.0 | |
| 1.38 | 3.02 | 2.17 | 4.74 | -10.75 | 305.50 | -70.54 | 102.53 | 0.9503 | -528.2 | -480.9 | |
| 5.78 | 13.88 | 9.33 | 22.33 | -11.36 | 305.06 | -70.97 | 103.10 | 0.9530 | -569.0 | -541.3 | |
| 1.03 | 2.50 | 1.88 | 4.53 | -13.83 | 303.24 | -72.80 | 105.42 | 0.9634 | -275.3 | -262.9 | |
| 0.00 | 0.60 | 0.00 | 1.10 | -13.62 | 303.09 | -72.95 | 105.18 | 0.9640 | -265.0 | -254.1 | |
| 0.34 | 21.03 | 0.54 | 34.11 | -10.03 | 305.33 | -70.71 | 101.76 | 0.9507 | -511.5 | -227.0 | |
| 0.00 | 8.19 | 0.00 | 15.46 | -13.95 | 302.71 | -73.33 | 105.47 | 0.9659 | 0.0 | 116.0 | |
| 0.00 | 1.29 | 0.00 | 2.10 | -10.73 | 304.86 | -71.18 | 102.42 | 0.9536 | -493.0 | -496.1 | |
| 0.00 | 5.00 | 0.00 | 8.40 | -11.37 | 304.28 | -71.75 | 103.02 | 0.9569 | -426.0 | -387.7 | |
| 0.00 | 1.21 | 0.00 | 2.24 | -13.45 | 302.80 | -73.24 | 104.97 | 0.9652 | -337.0 | -288.1 | |
| 0.00 | 1.38 | 0.00 | 2.55 | -13.20 | 302.89 | -73.14 | 104.73 | 0.9646 | -373.0 | -307.1 | |
| 0.00 | 1.21 | 0.00 | 2.30 | -13.56 | 302.49 | -73.55 | 105.05 | 0.9666 | 197.0 | 255.5 | |
| 0.00 | 1.90 | 0.00 | 3.39 | -12.31 | 303.35 | -72.69 | 103.87 | 0.9620 | -485.0 | -315.9 | |
| 4.14 | 23.45 | 6.87 | 39.50 | -10.27 | 304.35 | -71.69 | 101.88 | 0.9559 | -545.3 | -408.1 | |
| 9.31 | -29.00 | 15.75 | -29.00 | -10.59 | 304.06 | -71.97 | 102.18 | 0.9575 | -529.4 | 999999 | |
| 0.00 | 3.02 | 0.00 | 5.27 | -10.38 | 303.48 | -72.55 | 101.89 | 0.9602 | -203.0 | -113.0 | |
| 0.00 | 4.74 | 0.00 | 8.40 | -10.07 | 303.15 | -72.88 | 101.52 | 0.9616 | -83.0 | -42.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
