SDO HMI 2014-11-10 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.22 | 0.00 | 5.74 | 19.58 | 340.88 | -34.06 | 61.47 | 0.6026 | -41.0 | 17.5 | |
|
previous
or next observation for the same group /

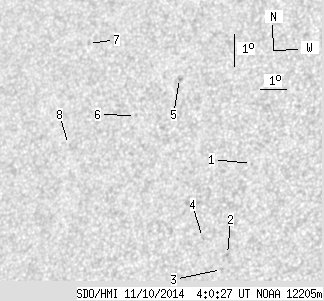

back to the solar disc SDO HMI 2014-11-10 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.62 | 19.29 | 344.06 | -30.88 | 59.85 | 0.5624 | -594.0 | -461.2 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 16.48 | 343.73 | -31.21 | 64.76 | 0.5515 | -855.0 | -697.3 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 16.02 | 343.60 | -31.34 | 65.63 | 0.5510 | -624.0 | -528.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 16.97 | 342.73 | -32.21 | 64.51 | 0.5670 | -540.0 | -420.8 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 21.85 | 340.74 | -34.20 | 58.04 | 0.6173 | 780.0 | 645.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 20.64 | 339.35 | -35.59 | 60.64 | 0.6272 | 527.0 | 405.1 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 22.82 | 336.82 | -38.12 | 58.86 | 0.6672 | 522.0 | 357.9 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 19.66 | 336.97 | -37.97 | 63.30 | 0.6509 | 456.0 | 492.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
