SDO HMI 2014-11-10 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.62 | 0.00 | 5.36 | 20.10 | 340.55 | -33.84 | 60.45 | 0.6026 | 224.3 | 145.3 | |
|
previous
or next observation for the same group /

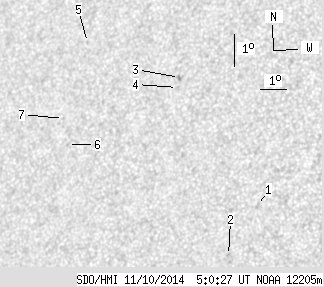

back to the solar disc SDO HMI 2014-11-10 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.12 | 17.99 | 344.53 | -29.86 | 61.32 | 0.5419 | -756.0 | -588.3 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 16.43 | 343.77 | -30.63 | 64.49 | 0.5436 | -716.0 | -724.9 | |
| 0.00 | 2.24 | 0.00 | 1.40 | 21.86 | 340.76 | -33.63 | 57.65 | 0.6107 | 806.0 | 664.2 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 21.54 | 340.77 | -33.63 | 58.12 | 0.6089 | 661.0 | 580.7 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 22.83 | 336.83 | -37.56 | 58.53 | 0.6610 | 536.0 | 439.8 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 19.64 | 336.98 | -37.41 | 63.05 | 0.6443 | 548.0 | 426.3 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 20.44 | 336.60 | -37.80 | 62.07 | 0.6523 | 491.0 | 417.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
