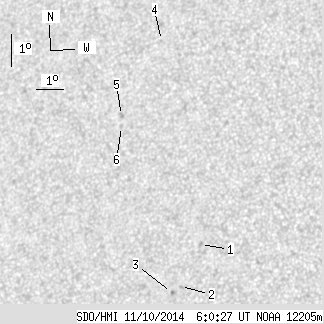

SDO HMI 2014-11-10 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.93 | 0.00 | 4.78 | 19.77 | 342.43 | -31.42 | 59.56 | 0.5717 | -75.2 | 15.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.16 | 17.97 | 344.53 | -29.31 | 60.96 | 0.5348 | -747.0 | -654.2 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 16.66 | 344.05 | -29.80 | 63.55 | 0.5339 | -739.0 | -554.4 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 16.47 | 343.76 | -30.09 | 64.07 | 0.5367 | -875.0 | -808.9 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 24.27 | 341.64 | -32.21 | 53.13 | 0.6097 | 543.0 | 507.3 | |
| 0.00 | 2.33 | 0.00 | 1.44 | 21.87 | 340.76 | -33.09 | 57.28 | 0.6045 | 753.0 | 648.0 | |
| 0.00 | 1.55 | 0.00 | 0.96 | 21.53 | 340.84 | -33.00 | 57.74 | 0.6015 | 614.0 | 511.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
